Liquid Vapor Separator: Service and Repair

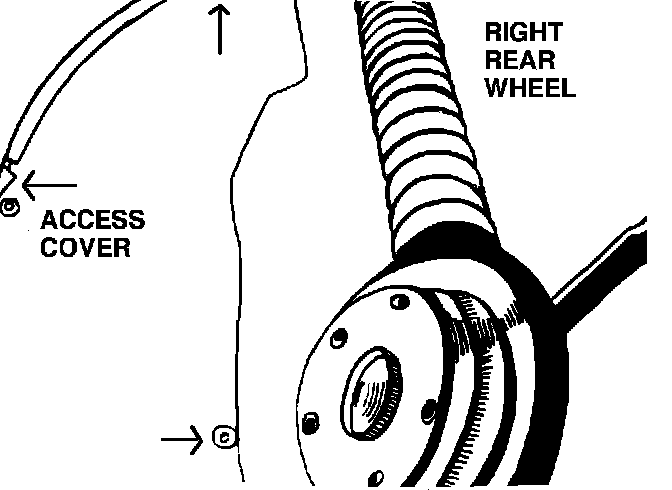

Expansion Tank Access:

1. Remove the right rear wheel.
2. Remove the splash guard from the wheel housing.

Fig. 41 Expansion Tank/Hose Routing:

3. Loosen the clamps and pull the vent hoses from the expansion tank.

CAUTION: Pressurized fuel may be present.

4. Remove the expansion tank.
5. Reinstall in reverse order.
