Evaporative Emission Control Canister: Service and Repair

REMOVE AND INSTALL

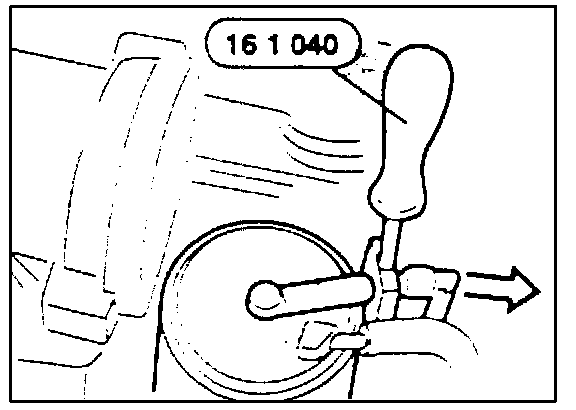

Charcoal Canister R&R:

- Unfasten connecting nipple with special tool 16 1 040 and remove tank breather.

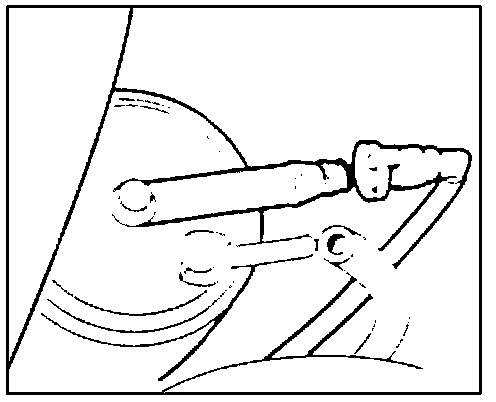

Charcoal Canister R&R:

- Pull hose free of carbon canister.

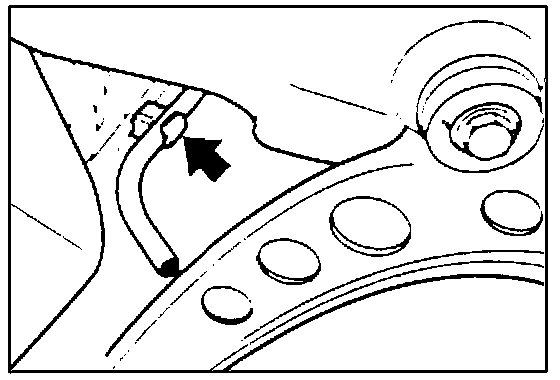

Charcoal Canister R&R:

- Unclip filter vent.

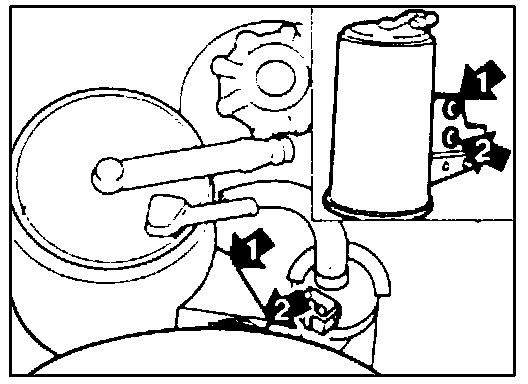

Charcoal Canister R&R:

- Unfasten screws (1 and 2), active carbon filter.
- Reinstall in reverse order.
