Home >> BMW >> 1994 >> 525i Touring Wagon (E34/2) L6-2494cc 2.5L DOHC (M50 TU) >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Block Diagram

Block Diagram

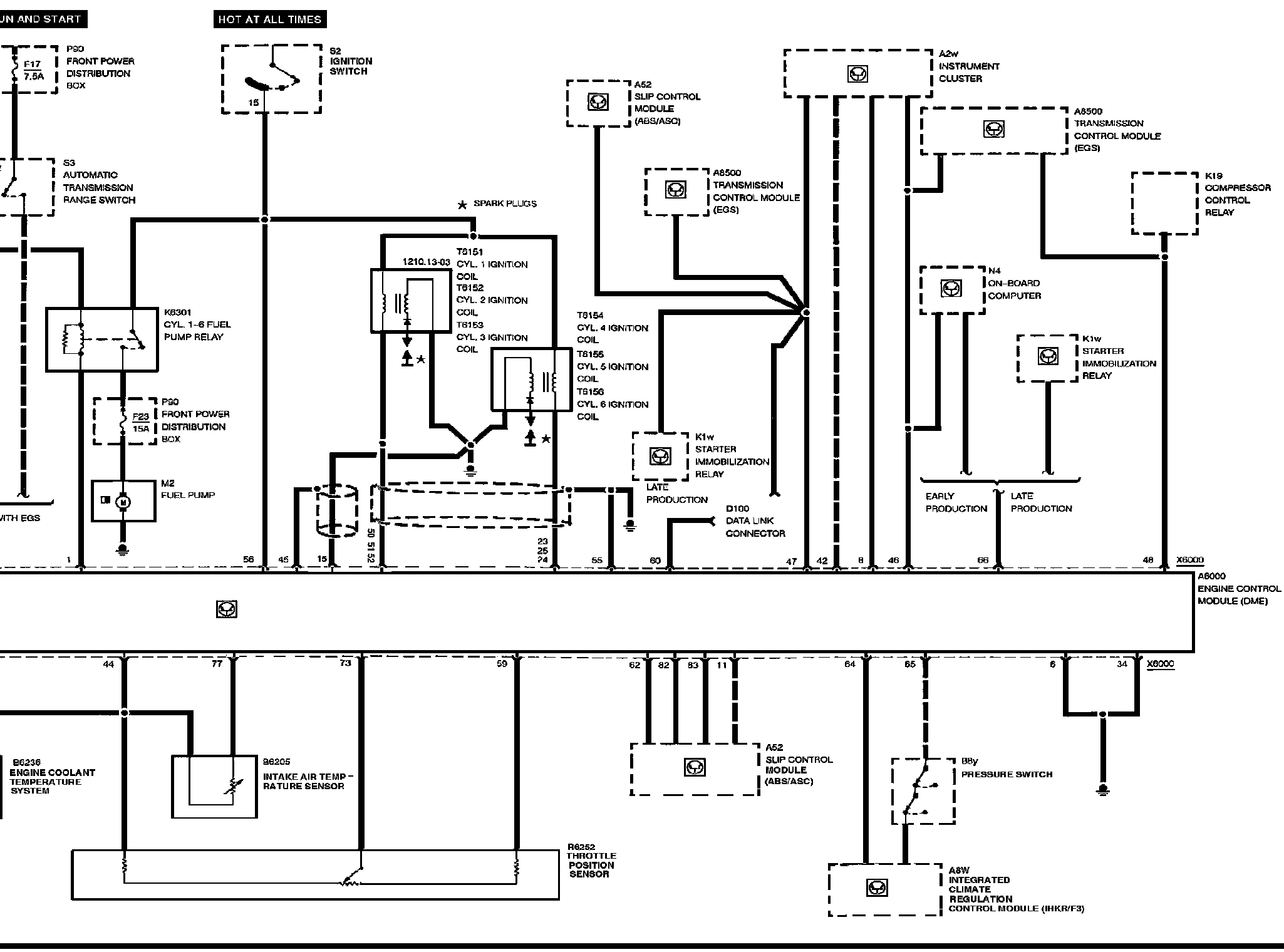

��� Engine Control System (DME M3.3.1, 6-Cylinder):
