Ignition Monitoring Shunt: Locations

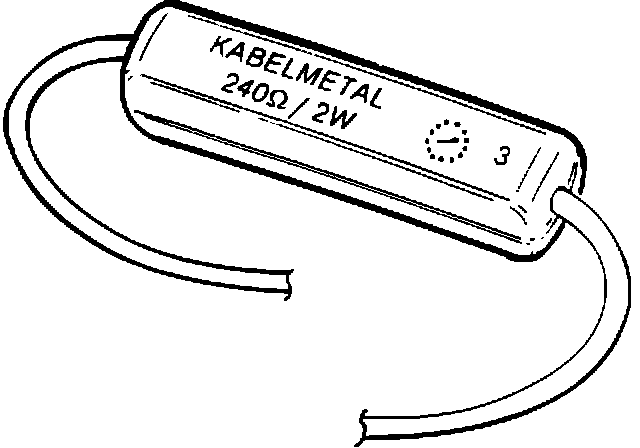

Monitoring Resistor (Shunt):




Shunt Location:

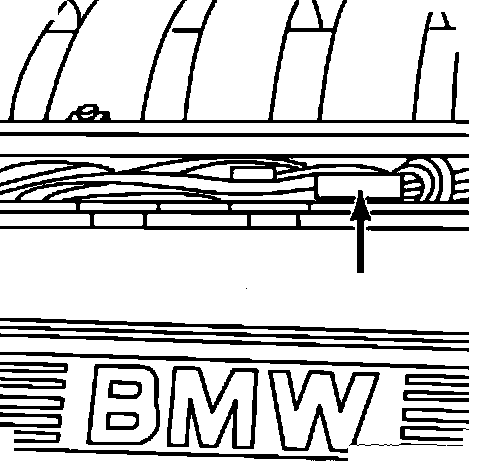

In the cable rail above the cylinder head.
