Data Link Connector: Locations

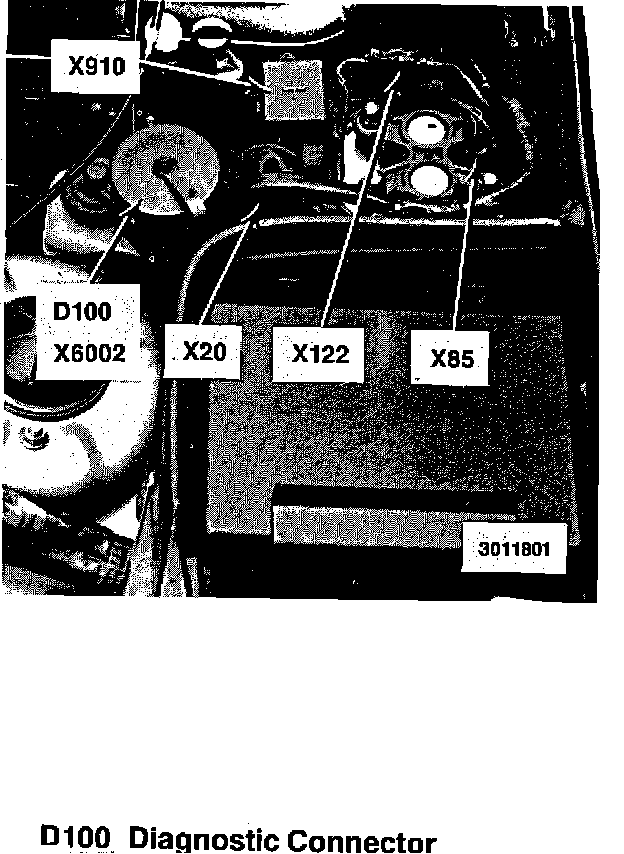

Diagnostic Connector Location:





Near the left front shock tower, above the brake fluid reservoir.
