Fluid Filter - A/T: Service and Repair

REMOVING AND INSTALLING OR REPLACING TRANSMISSION OIL FILTER SCREEN
- Remove transmission oil sump (pan). Service and Repair

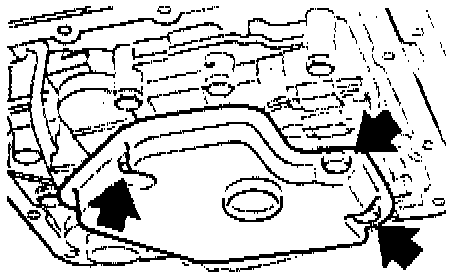

- Unscrew oil strainer on valve body.
- Take off oil strainer.
- Replace O-ring.
- Install new oil filter screen.
- Tighten oil strainer screws to 8 Nm (6 ft lb)
- Refill transmission. Service and Repair
