Seat/Mirror Memory Control Module


Component/Connector Location Views:

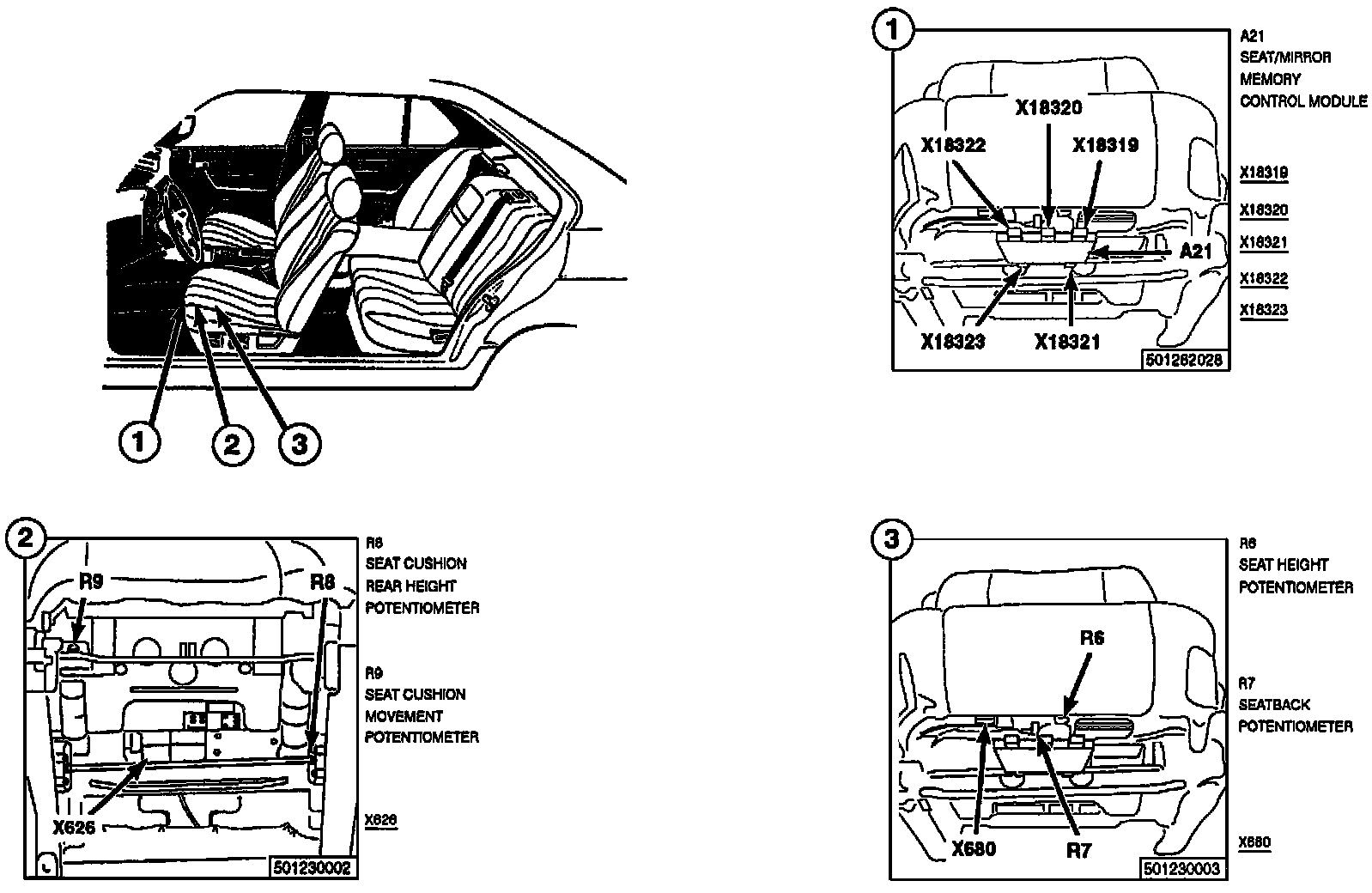

Figure 1
Component ID A21, Seat/Mirror Memory Control Module
Location Underside of LH Front seat
