Headlamp: Service and Repair
Removing And Installing Left Or Right Double Headlight Complete With Console
:
-
Remove radiator grill.
Service and Repair
-

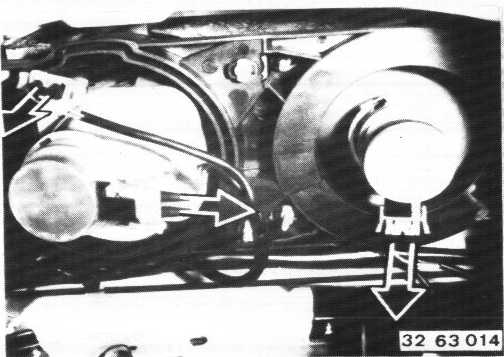

Pull off plug.
-

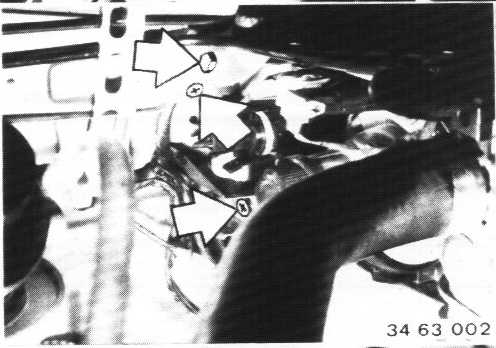

Unscrew screws.
-

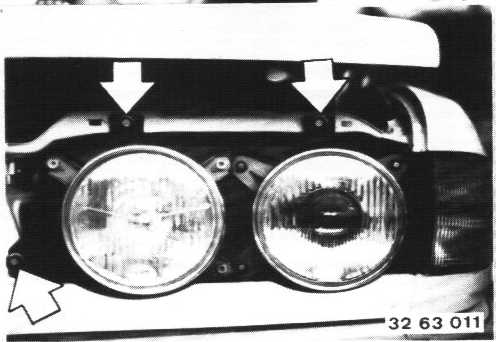

Unscrew screws and remove headlight with console.
