Headlight - Low Beam

Replacing Left Or Right Headlight (High Beam):

- Remove radiator grill.
Service and Repair




- Heat plastic sleeves with a hot air blower and lift out reflector.

Installation:

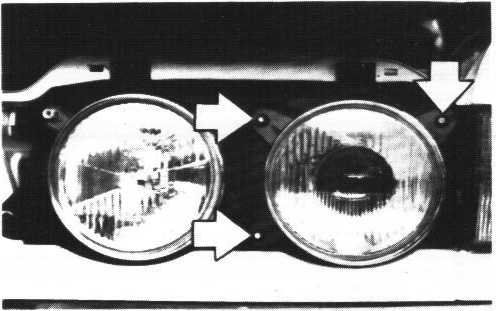

- First insert plastic bushings on ball-head pins and then press headlight on bushings.

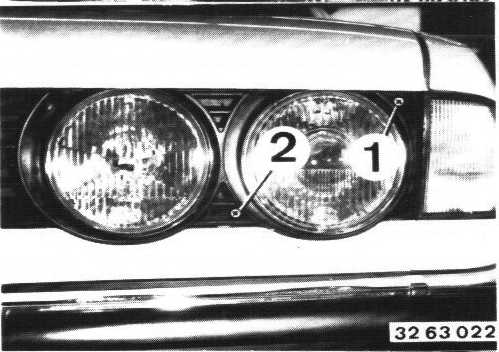

1 = Lateral adjustment from engine compartment
2 = Vertical adjustment
