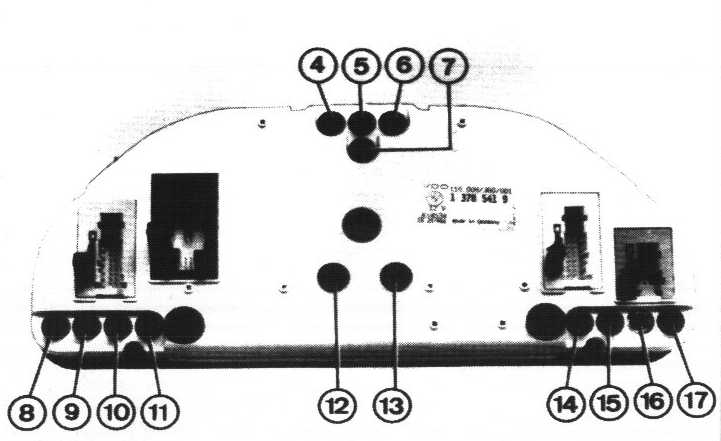

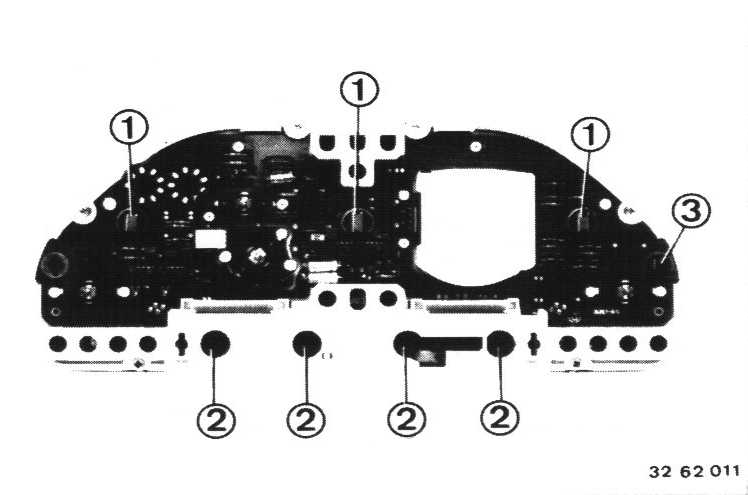

Instrument Panel Bulb: Locations

1 Lamp for instrument
2 Lamp for LCD module
3 Fuel reserve
4 Right turn signals
5 High beams
6 Left turn signals
7 Turn signals (trailer hitched)
8 SRS
9 ABS
10 Brake fluid level and brake pad wear
11 Parking brake
12 Engine oil pressure
13 Battery charge
14 Rear fog lights
15 Front fog lamps
16 Check Engine
17 Seat belts
