525i Touring Wagon (E34/2) L6-2494cc 2.5L DOHC (M50 TU)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Cluster/Check Control (K/CC)
>>
Data Link
Data Link

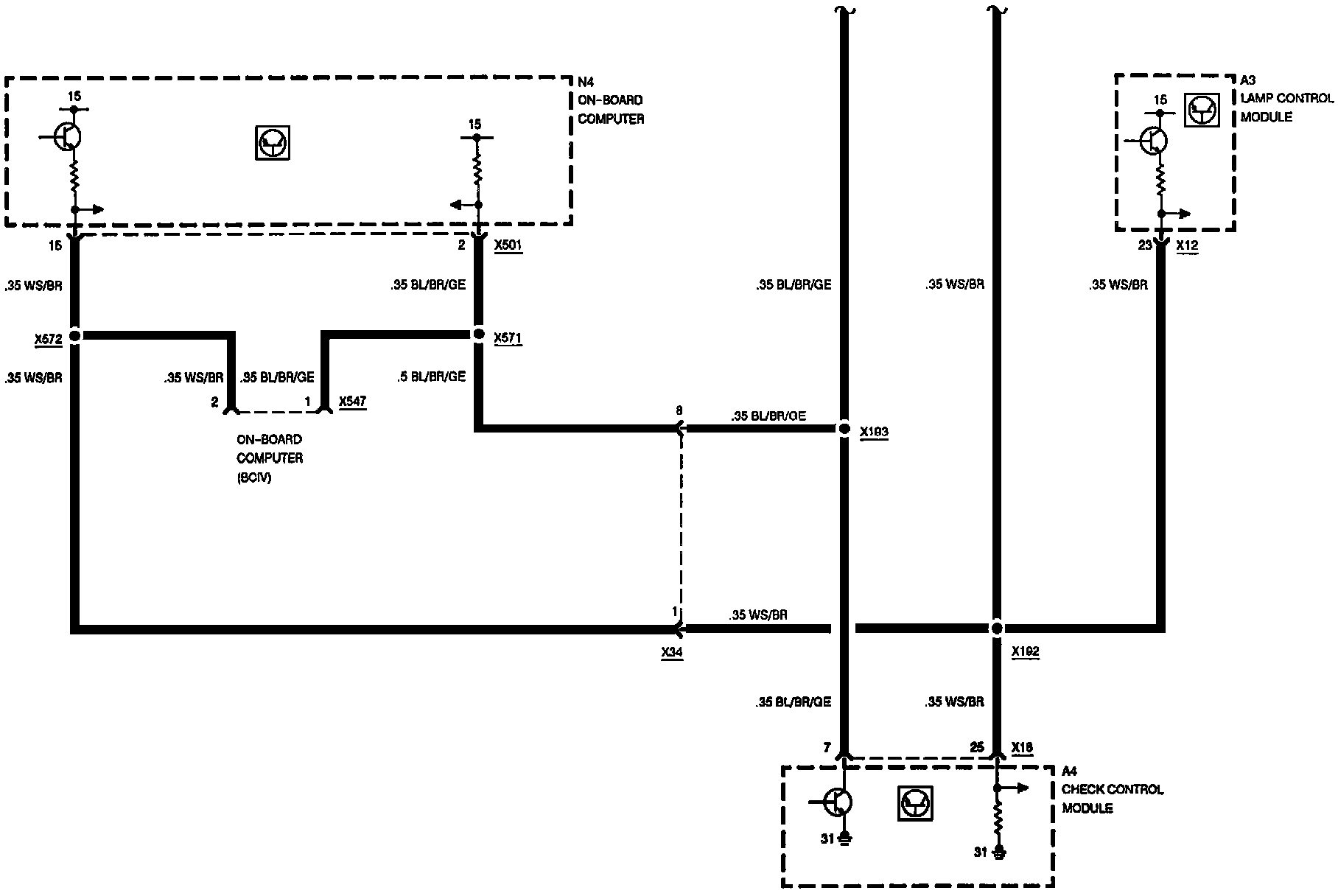

Instrument Cluster/Check Control: Data Link (Part 1 Of 2):

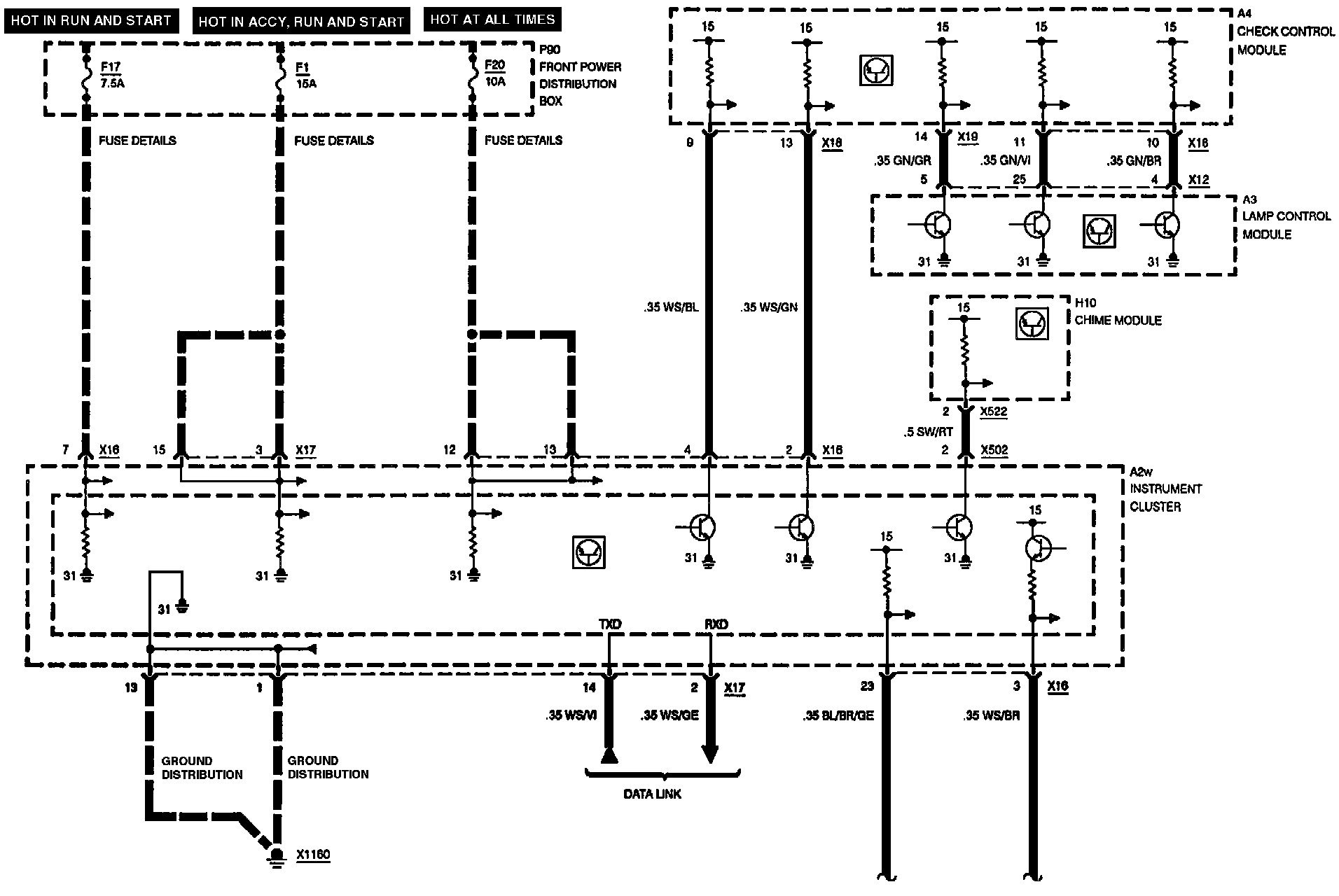

Instrument Cluster/Check Control: Data Link (Part 2 Of 2):
