Control Assembly: Service and Repair

DISTRIBUTION CONTROL PANEL, REMOVING AND INSTALLING

1. Remove radio.

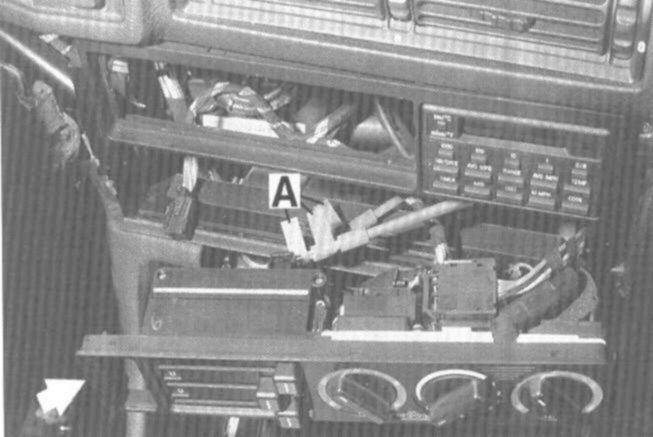

2. Reach in through radio opening and push tab outwards (toward steering wheel) and remove panel just far enough to disconnect connectors and cables from back of unit.
- To remove bowden cables, press together retaining tab (A) and lift out cable end from operating lever.

3. Installation is reverse of removal.
