Condenser HVAC: Service and Repair

A/C CONDENSER, REPLACING

1. Following the manufacturer's instructions, connect an approved refrigerant recovery/recycling/recharging unit to the A/C system and discharge system.

WARNING - Do not discharge/charge the A/C system without proper equipment and training, damage to the vehicle and personal injury may result. Read warnings and cautions given under A/C system, warnings and cautions.

2. Disconnect negative (-) battery terminal.

3. Remove front bumper and center radiator grill. Service and Repair

4. Loosen A/C lines from lower left corner of condenser. Disconnect electrical connector.

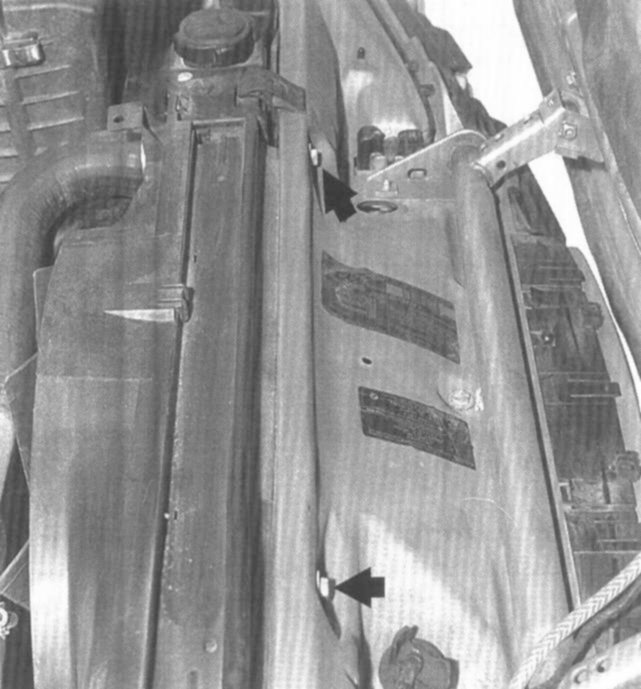

5. Remove condenser mounting bolts (arrows) from front radiator support.

6. Lift up condenser to disengage from lower mounts and remove from below.

7. Installation is the reverse of removal. Replace O-rings at pressure fittings.

CAUTION: Do not re-use O-rings when reconnecting refrigerant lines. Always replace O-rings.

8. Before recharging, evacuate the system for at least 30 min. Recharge system following the equipment manufacturer's instructions.
