Heater Microfilter

Replacing Microfilter (Heating System)

The filter is located in the passenger compartment, under the dash.

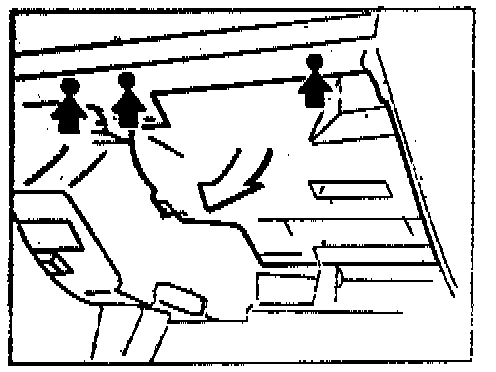

Glovebox Removal.:

- Remove the glovebox.
- Remove screws.
- Pull the trim panel forward out of the rear clip.

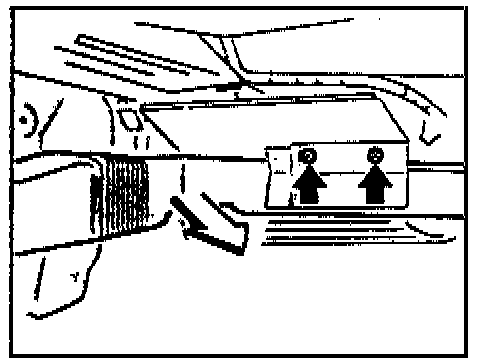

Cover Removal.:

- Pull the clip out and remove the cover.

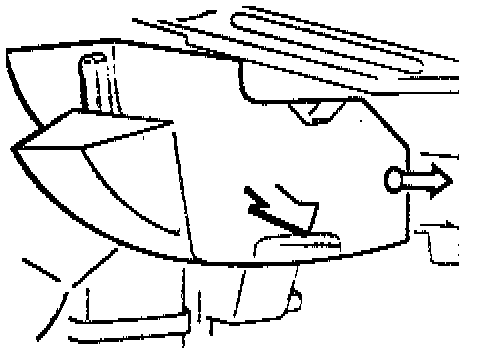

Air Duct.:

- Remove screws and lift the air duct out.

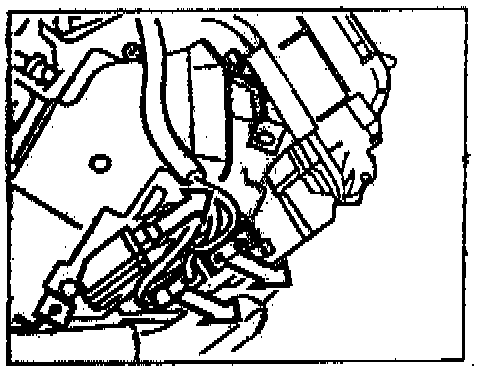

Control Unit.:

- Pull all plugs off of the control unit and place the wire harness on top.

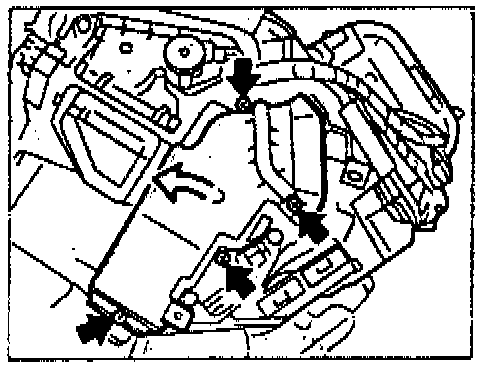

Removing And Installing The Cover.:

- Remove screws and remove the cover.

Removing And Installing The Microfilter.:

- Pull out micro-filter.

NOTE: In RHD models the filter is split longitudinally so that it will be easier to pull it past the steering column.
