Blower Motor: Service and Repair

BLOWER MOTOR, REMOVING AND INSTALLING

1. Disconnect negative (-) battery terminal.

2. On cars with coolant expansion tank in rear of engine compartment, remove hose from overflow tank and disconnect electrical connector from level sensor in tank. Unbolt expansion tank and move to one side.

3. Unclip wire harness protective cover on rear bulkhead. Cut wire ties as necessary.




4. Remove bulkhead splash shield by removing six retaining screws (arrows).

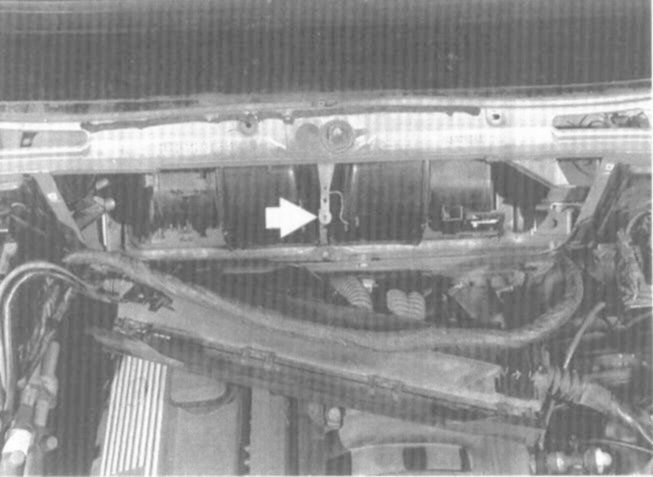

5. Unhook blower motor housing cover retaining strap (arrow) and remove cover.

6. Disconnect electrical connectors from blower motor.

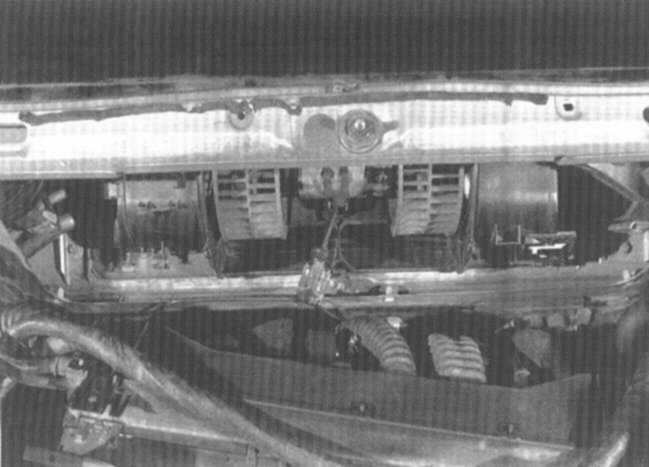

7. Unclip blower motor retaining strap from blower motor.

8. Remove blower motor from cowl opening.

9. Installation is reverse of removal.
