Blower Motor Resistor: Service and Repair

BLOWER SERIES RESISTANCE, REPLACING (IHKR II, IHKR III)

1. Remove carpeted trim panel from left side of center console. Trim panel is retained by a single screw in side of panel.

2. Disconnect harness connector from series resistor.

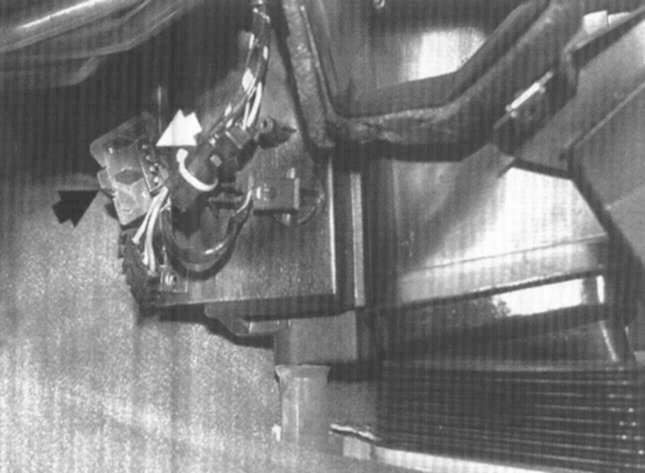

3. Pry apart clips (arrows)

4. Remove series resistor from heater housing.
