Air Door Cable: Service and Repair

DISTRIBUTION CONTROL PANEL CABLES, REPLACING

1. Remove glove box.

2. Remove carpeted trim cover at right side of center console.




3. Remove plastic trim cover at left of glove box.

4. Remove heating and air conditioning control panel. Service and Repair

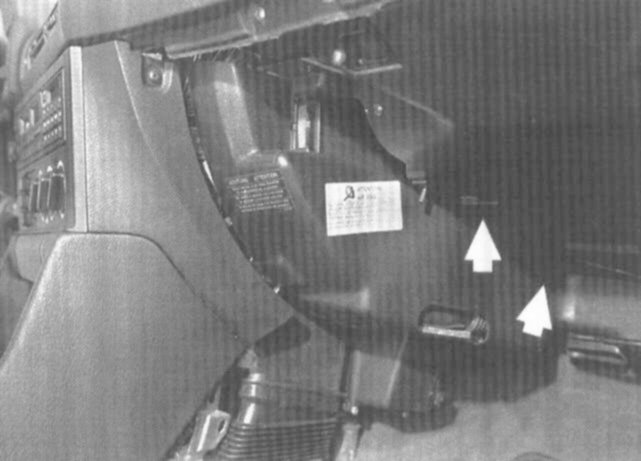

5. Disconnect bowden cable(s) from air distribution levers (arrows).

NOTE: On installation, the cables are adjusted automatically by moving the control lever left to the left stop or right to the right stop.
