Front Crankshaft Seal: Service and Repair

Remove hub for vibration damper.







Fit special tool 11 2 383 to crankshaft.







Fit special tool 11 2 385 to crankshaft.

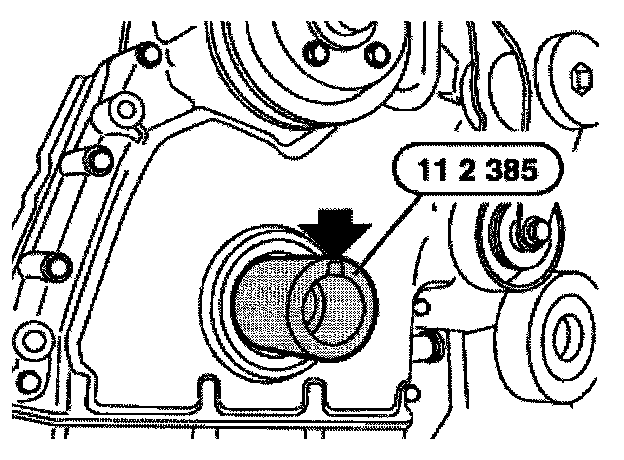

Align groove in special tool 11 2 385 with woodruff key in crankshaft.



NOTE: Special tool 11 2 385 centers special tool 11 2 380.








Screw in special tool 11 2 380 until it has made firm contact with radial seal.

Remove radial seal by tightening screw on special tool.







Installation:
Coat sealing lips of new radial sealing ring with oil.

Using special tool 11 3 280 and centering screw, install new radial seal
flush with timing case cover.
