Replace Oil Pump With Out VANOS

REMOVING OIL PUMP

- M50 -









Unscrew nut for sprocket.


Caution!
Left-hand threads.






Lift off sprocket with chain.


Installation:
Check for tooth engagement.

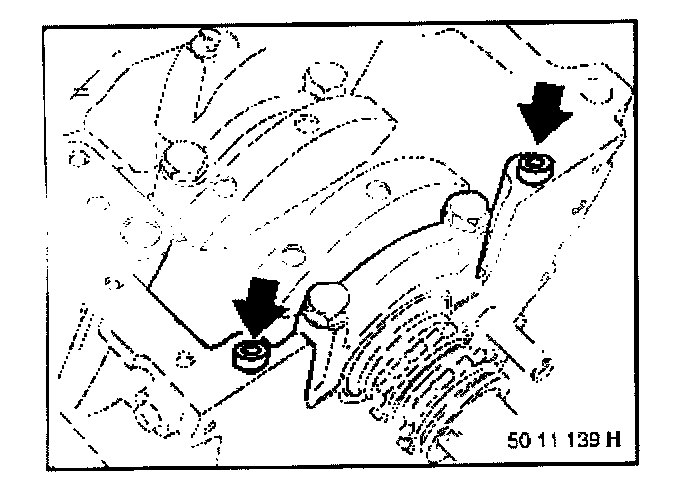

Unscrew oil pump.






Installation:
Check dowel sleeves.
