Replacing Hub For Vibration Damper

REPLACING HUB FOR VIBRATION DAMPER

-M50/M50TU -








Special tools required:

- 11 2 150
- 11 2 410

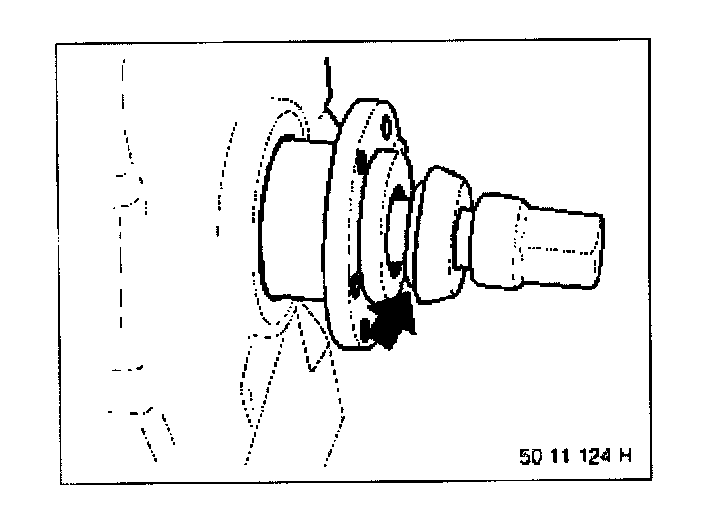

Remove vibration damper.

Note:
Remember to fit dowel pin.

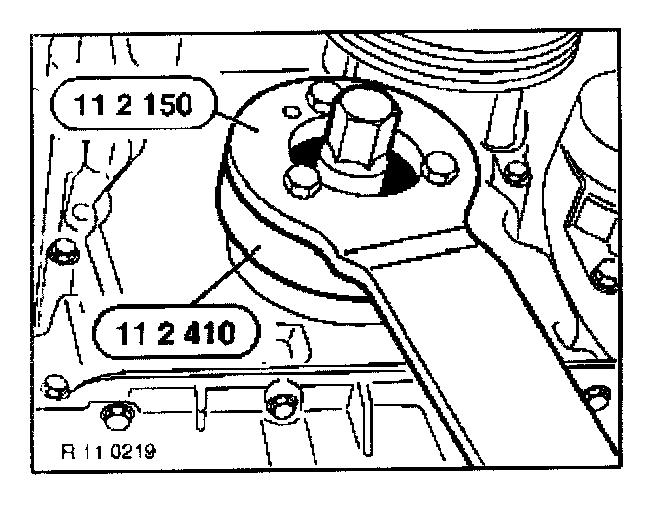

Secure special tool 11 2 150 with special tool 11 2 410 (shim) to hub for vibration damper.

When releasing and tightening down central bolt, grip special tool 11 2 150 with assistance of a second person.

If it is not possible to grip the tool securely; Remove mounted parts until the special tool 11 2 150 can be supported on the engine carrier without damaging other components.

Caution!
Protect engine bracket from damage.

Insert wood between engine carrier and special tool 11 2 150.
Unscrew central bolt. Detach hub for vibration damper.






Replace radial seal in lower timing case cover.






Installation:
Align hub with groove to featherkey.

Shoulder of washer faces hub.
Replace central screw.

Tightening torque, refer to specifications.
Specifications
