Removing Vibration Damper

REMOVING VIBRATION DAMPER

- M50/M50TU -







Arrest engine with special tool 11 2 170.

Caution!
Do not use a mandrel to hold the engine.






Unscrew vibration damper bolts and take off vibration damper.


Installation:

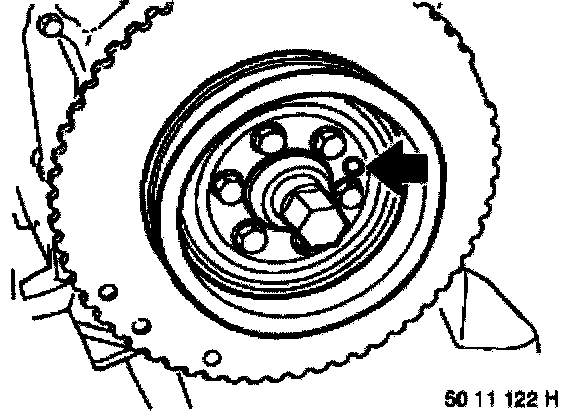

Align dowel-pin bore in vibration damper with dowel pin.

For tightening torque, refer to Specifications.
Specifications
