Other Inputs and Outputs

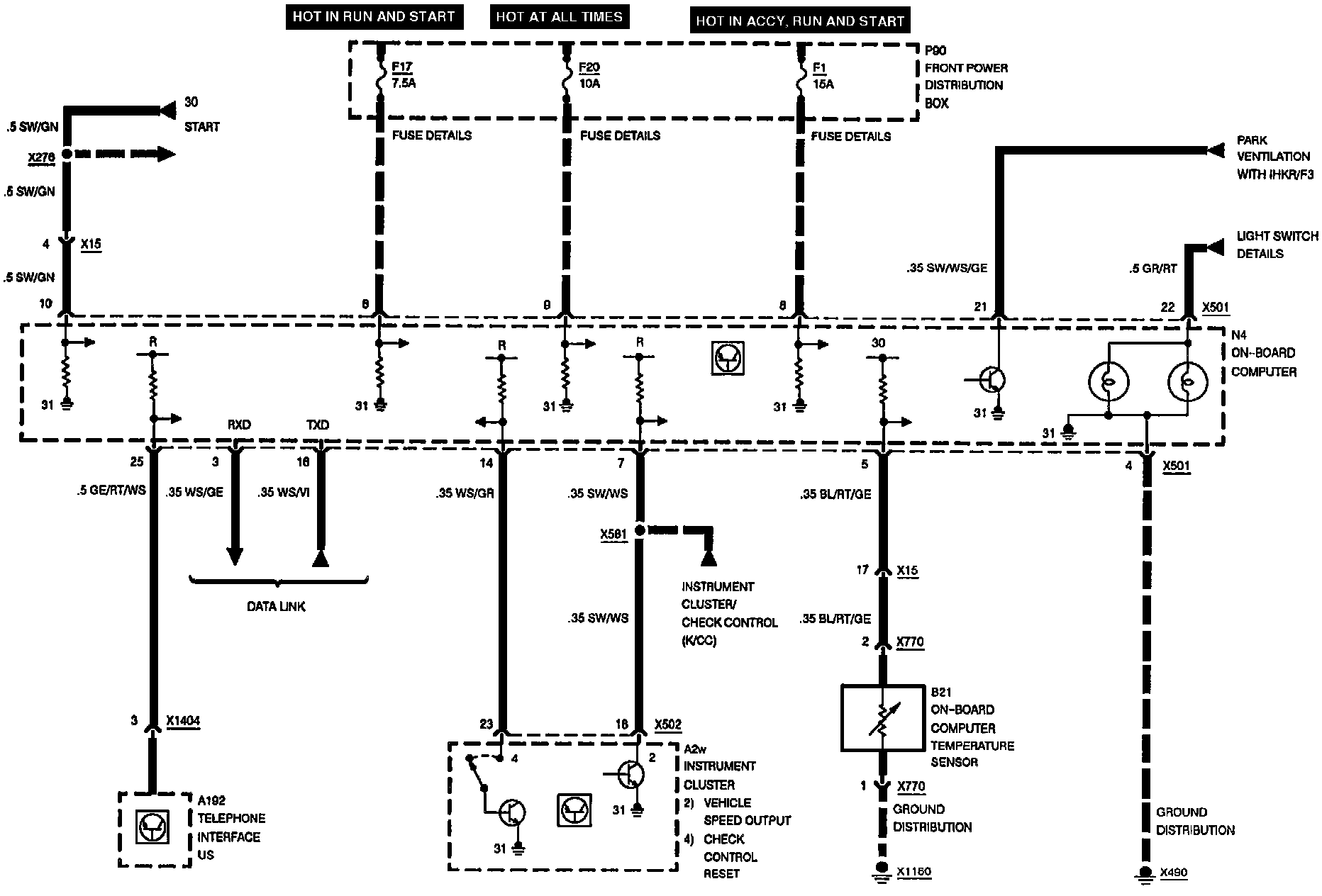

On-Board Computer: Other Inputs And Outputs:



On-Board Computer: Other Inputs And Outputs:
