Pin Assignments

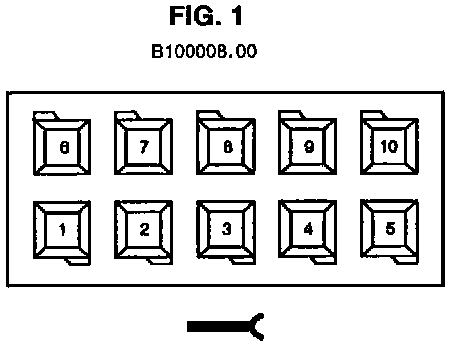

Connector Views: Fig.1:

X13085 CONNECTOR (10-PINS, BLACK)

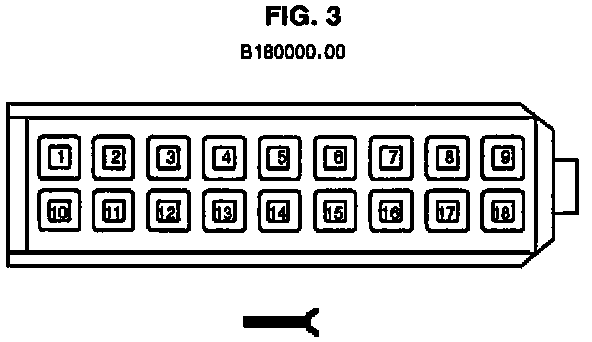

Connector Views: Fig.3:

X13086 CONNECTOR (18-PINS, BLACK)

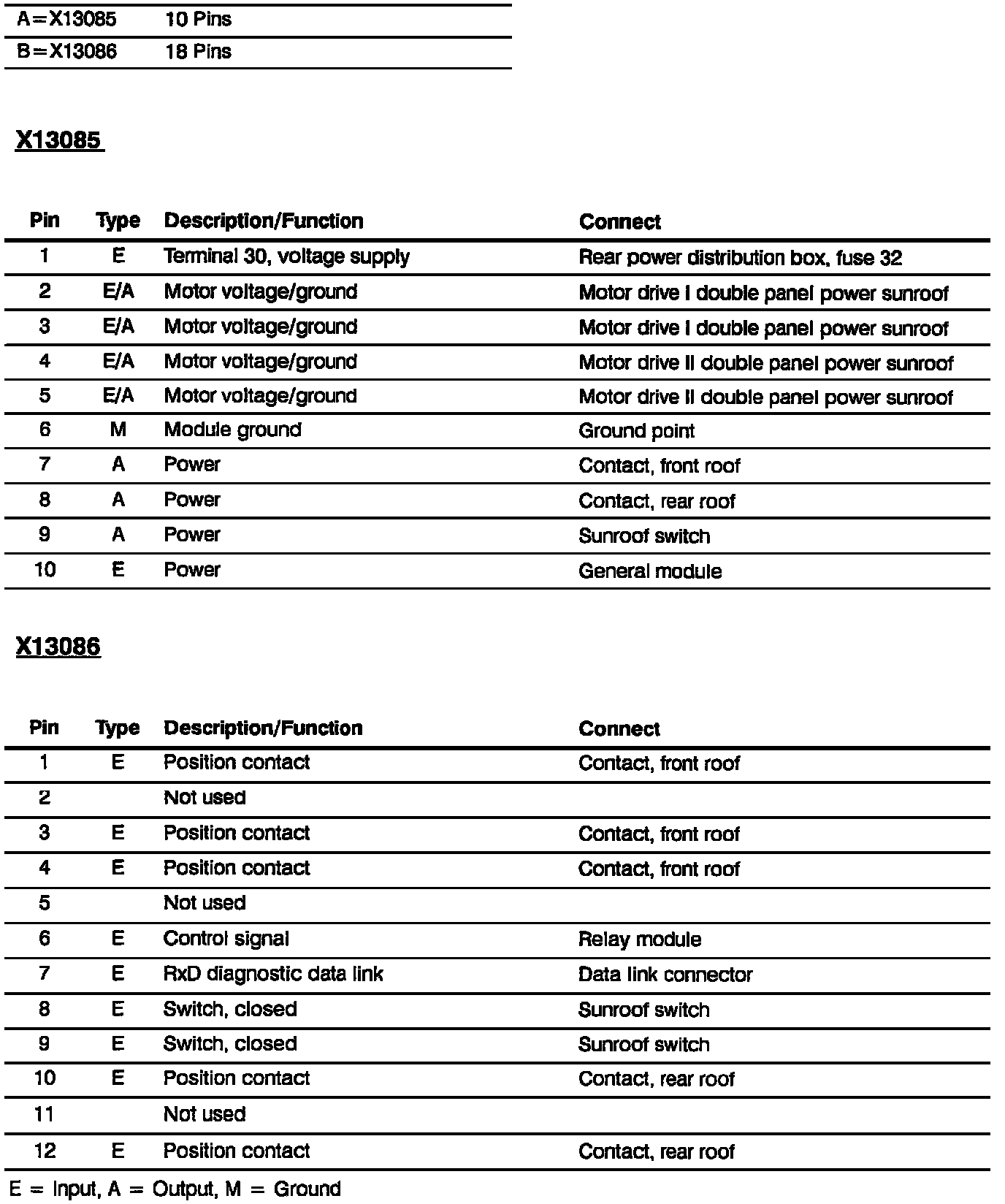

Double Panel Power Sunroof Pin Assignments (Part 1 Of 2):

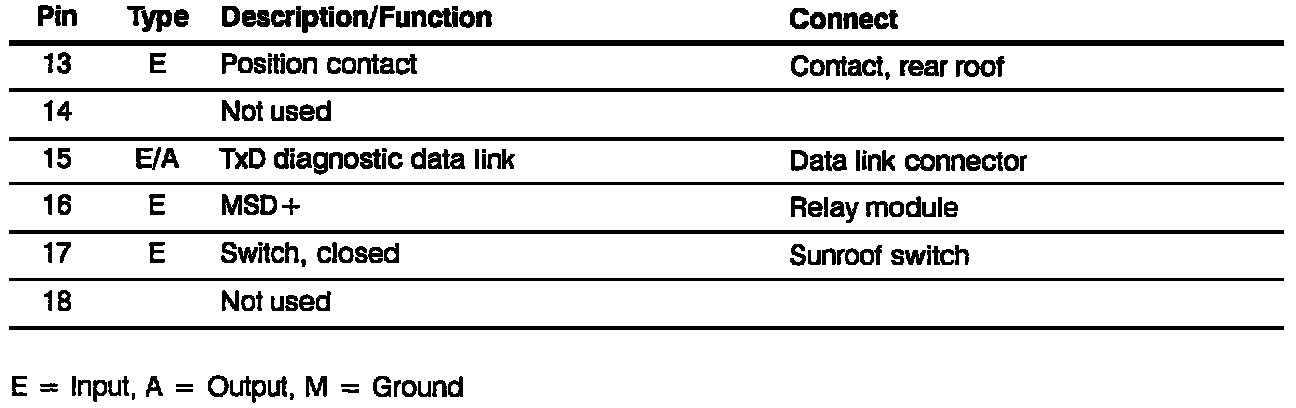

Double Panel Power Sunroof Pin Assignments (Part 2 Of 2):
