Home >> BMW >> 1994 >> 525i Touring Wagon (E34/2) L6-2494cc 2.5L DOHC (M50 TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> Fuse Details >> USA >> Fuses 34, 35, 36 and 37

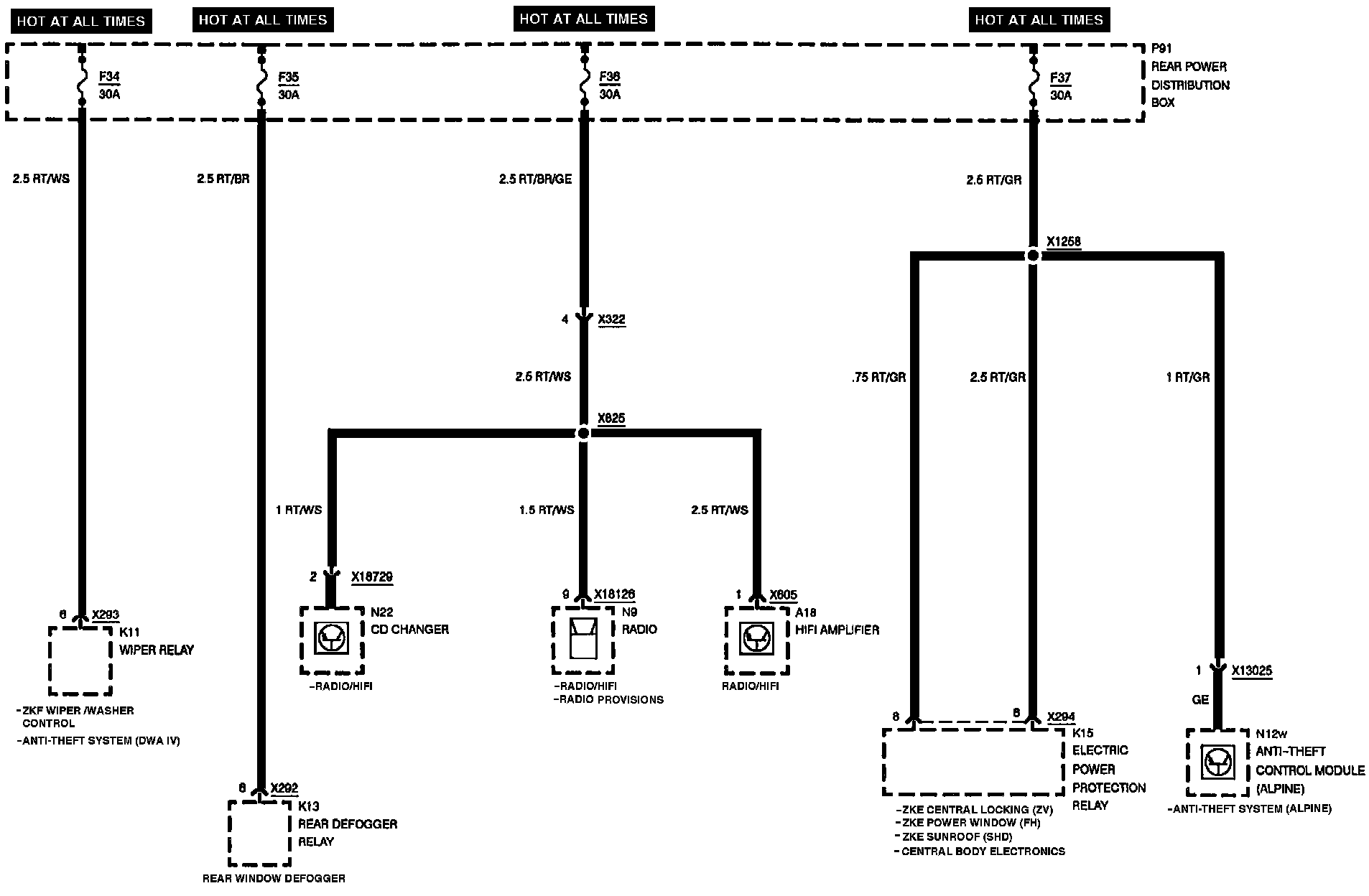

Fuses 34, 35, 36 and 37

Fuse Details: Fuses 34 - 37:
