525i Touring Wagon (E34/2) L6-2494cc 2.5L DOHC (M50 TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
License Plate/Luggage Compartment Lights
License Plate/Luggage Compartment Lights

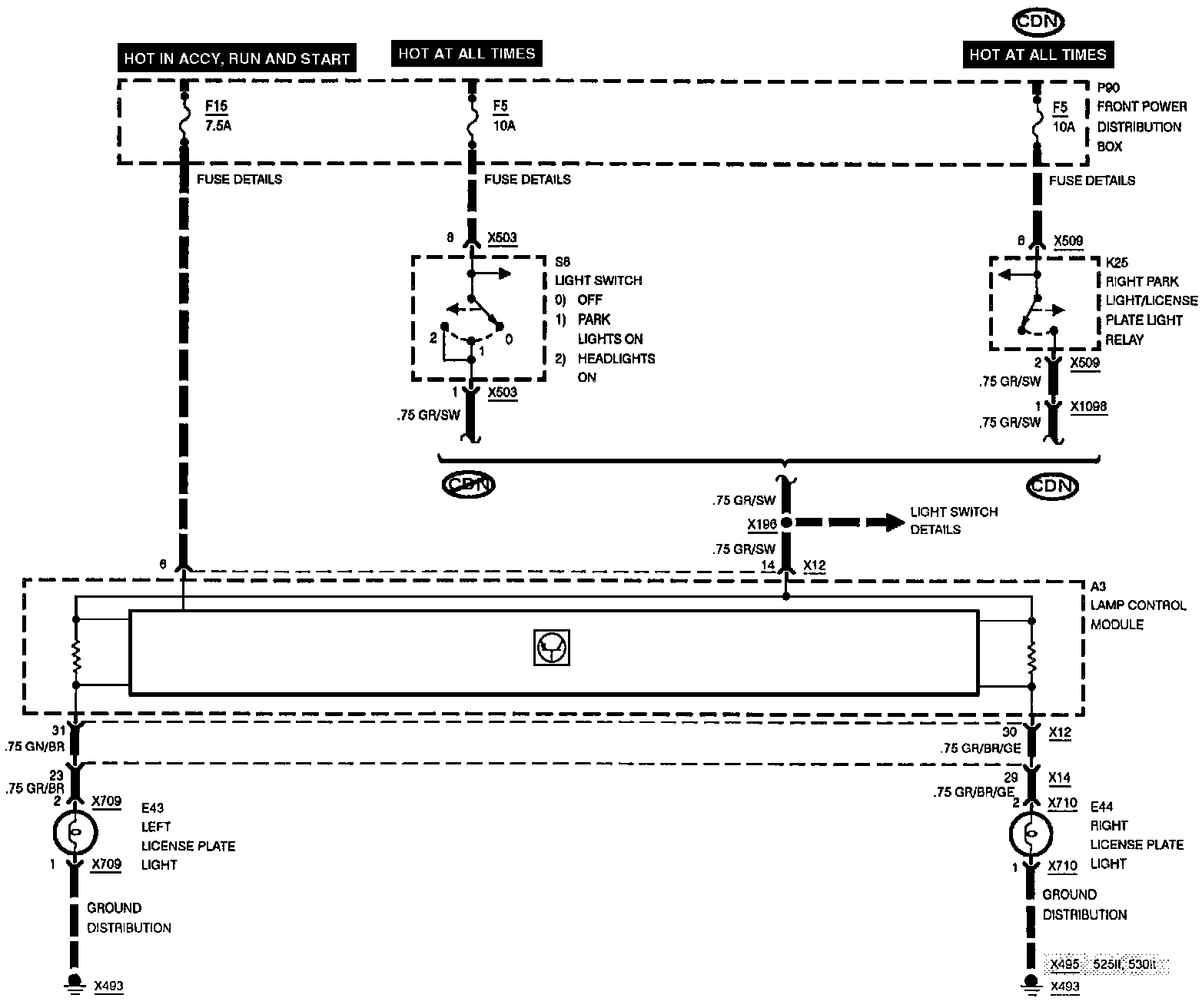

License Plate/Luggage Compartment Lights: License Plate Lights:
License Plate/Luggage Compartment Lights: Turnk Lights:
