Gauges

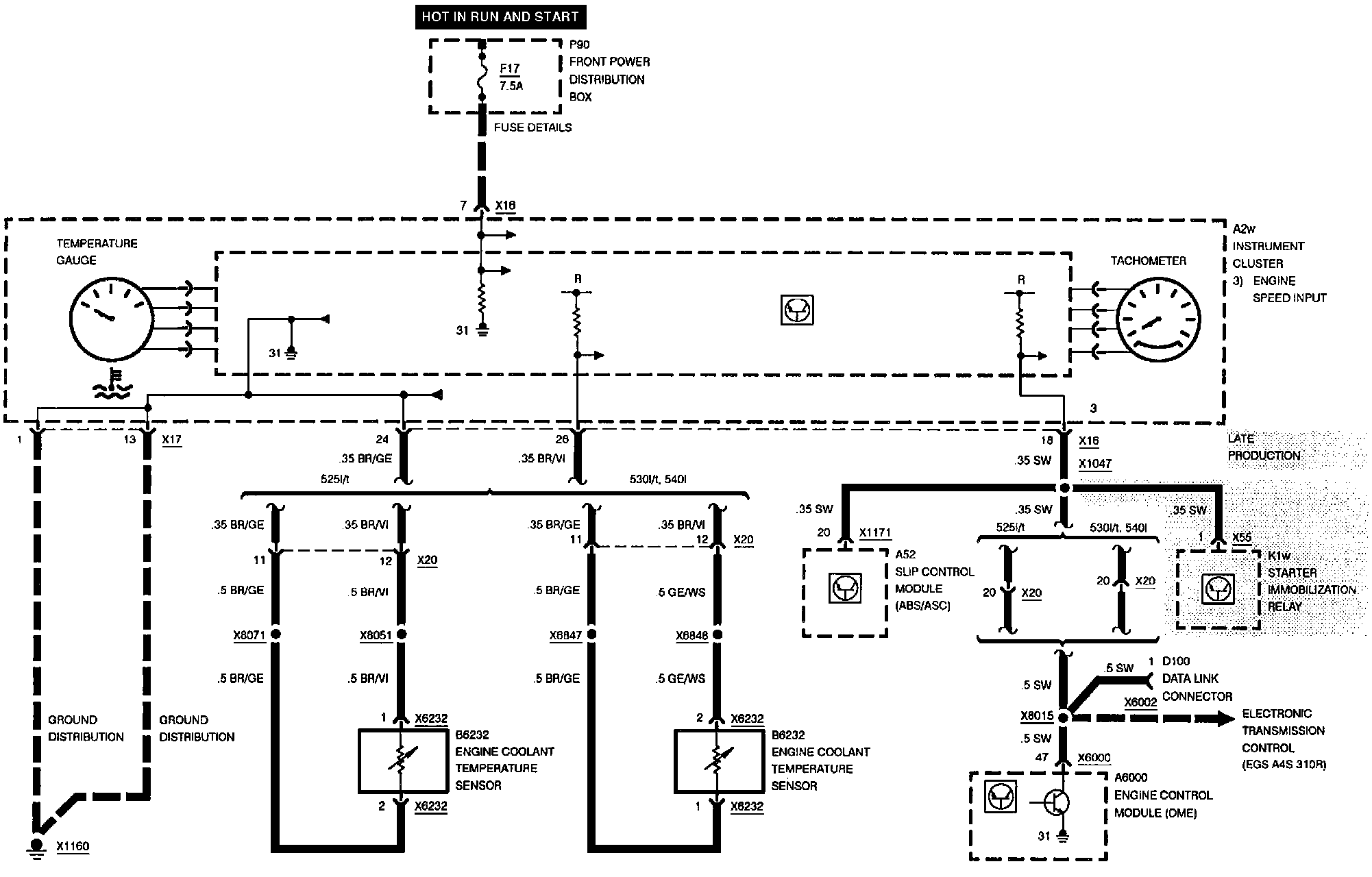

Instrument Cluster/Check Control: Gauges (Part 2 Of 3):

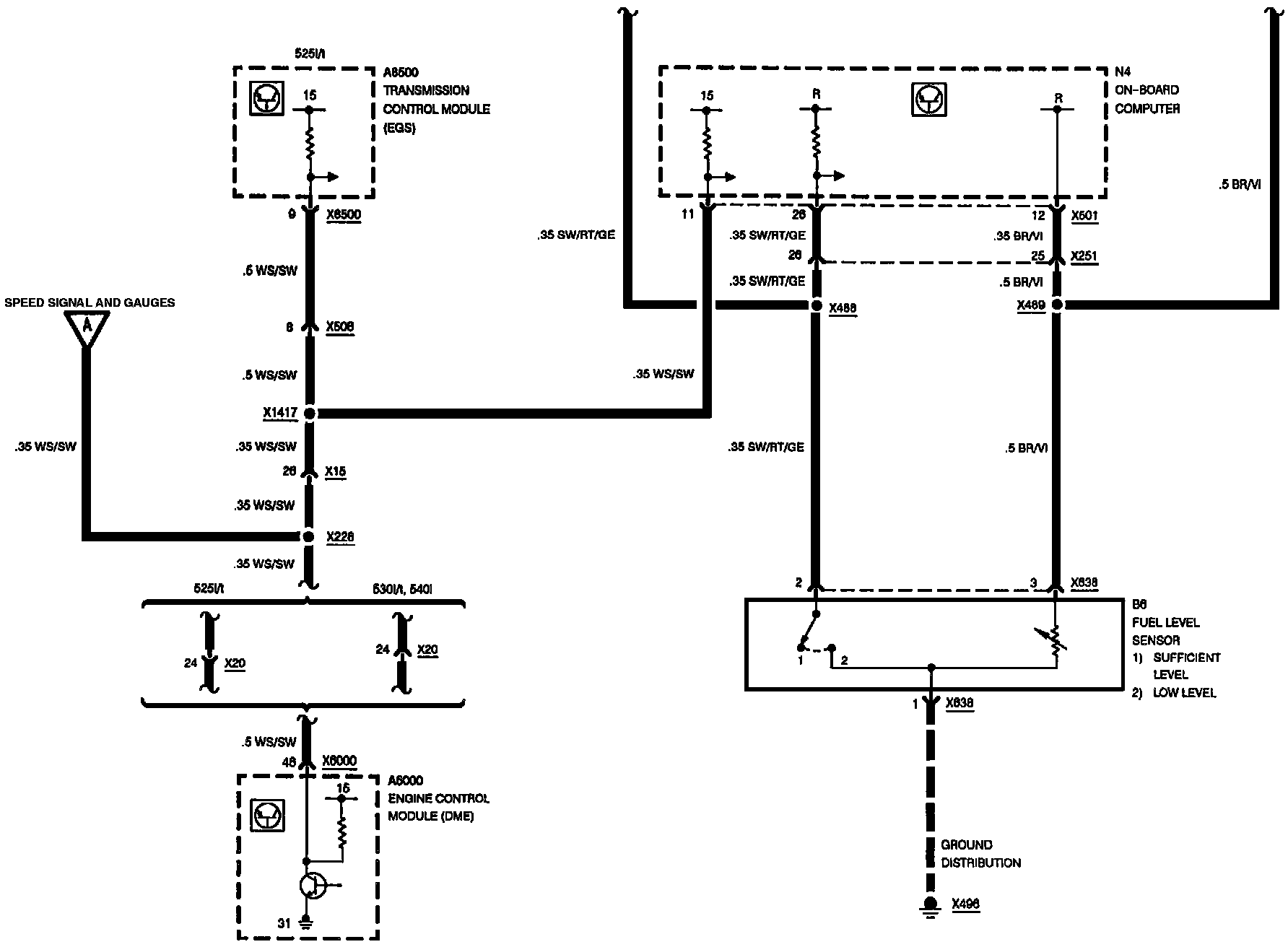

Instrument Cluster/Check Control: Gauges (Part 3 Of 3):

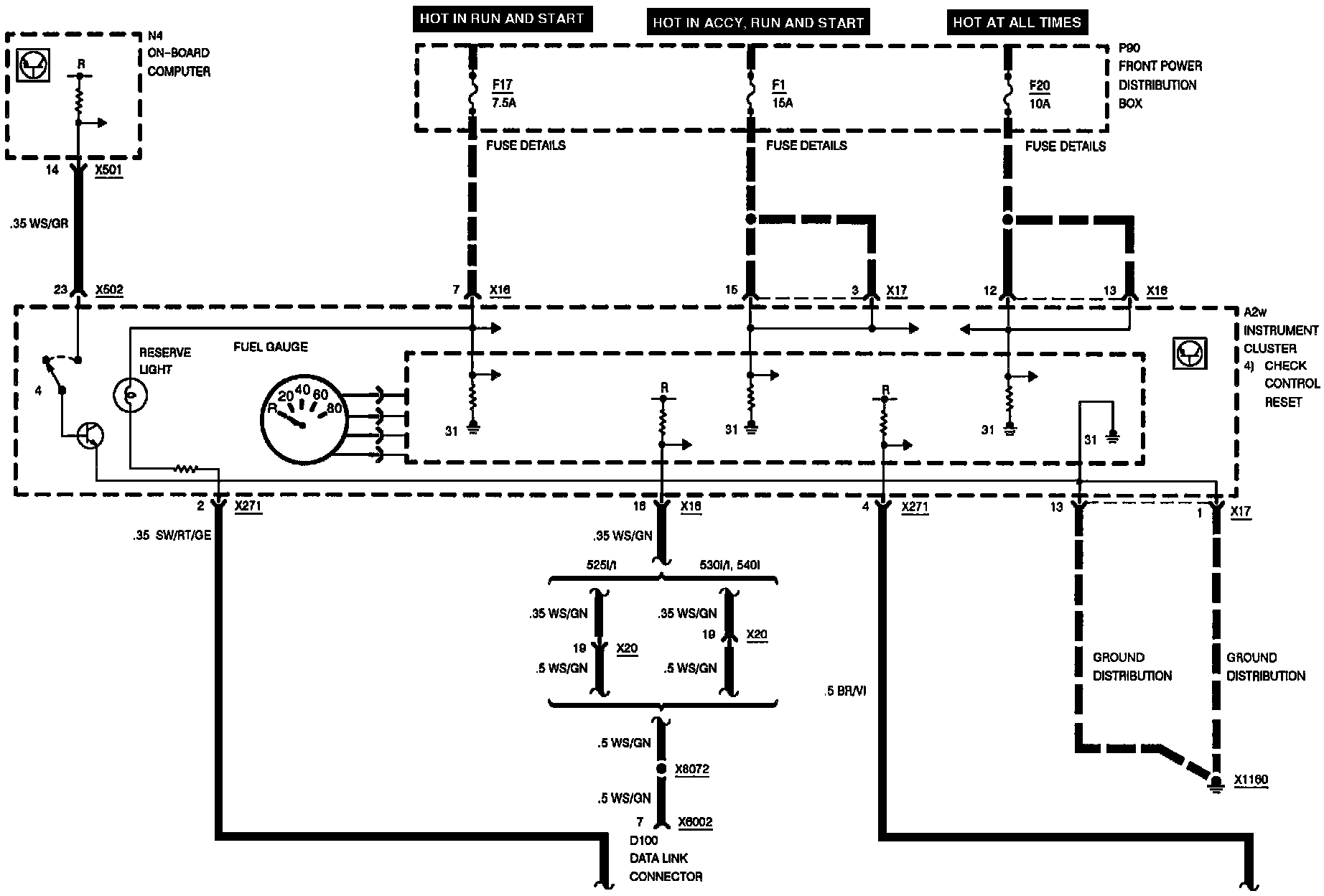

Instrument Cluster/Check Control: Gauges:
