Home >> BMW >> 1994 >> 525i Touring Wagon (E34/2) L6-2494cc 2.5L DOHC (M50 TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Central Control Module >> Electrical Diagrams >> General Module

General Module

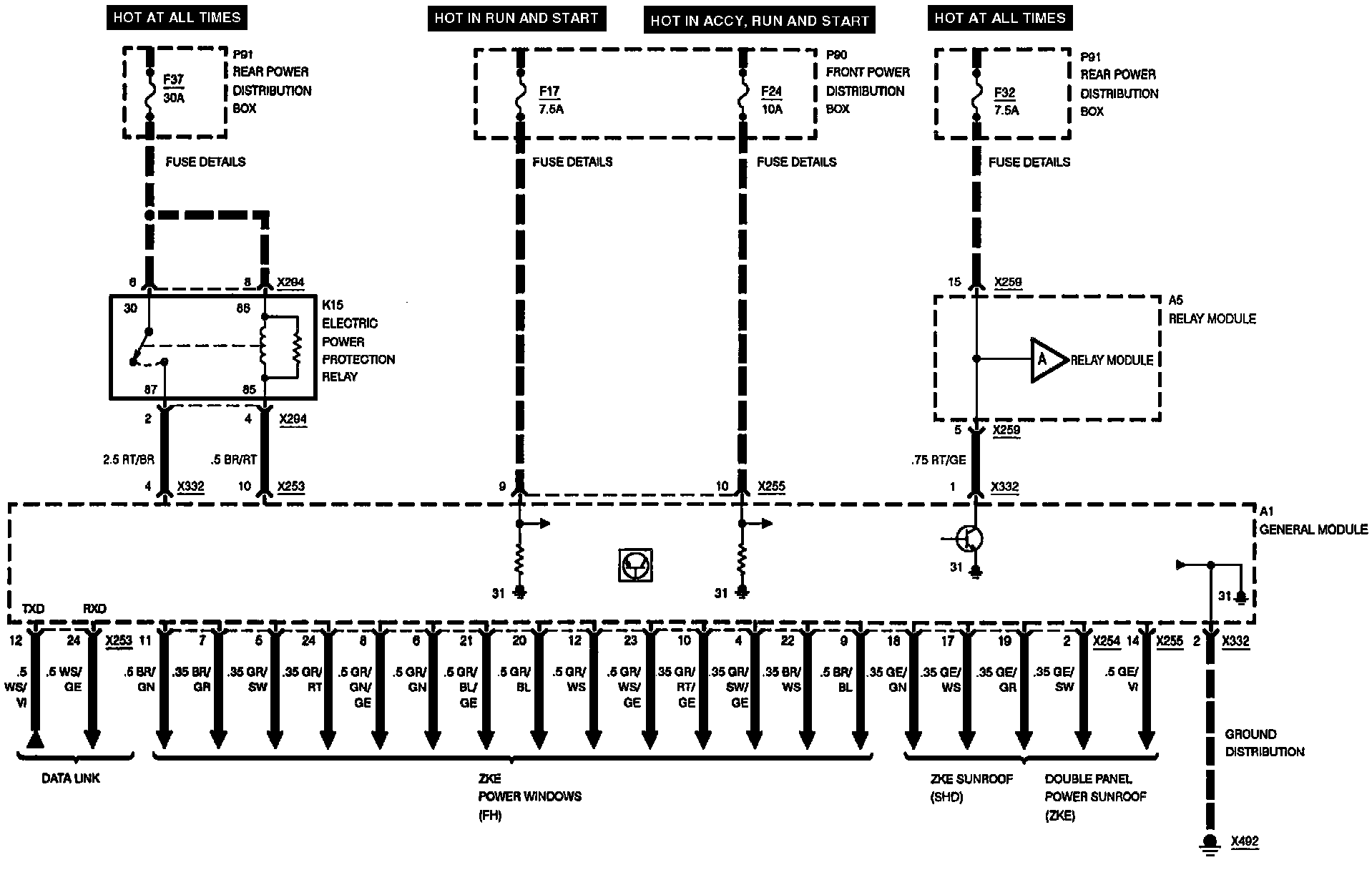

Central Body Electronics: General Module:

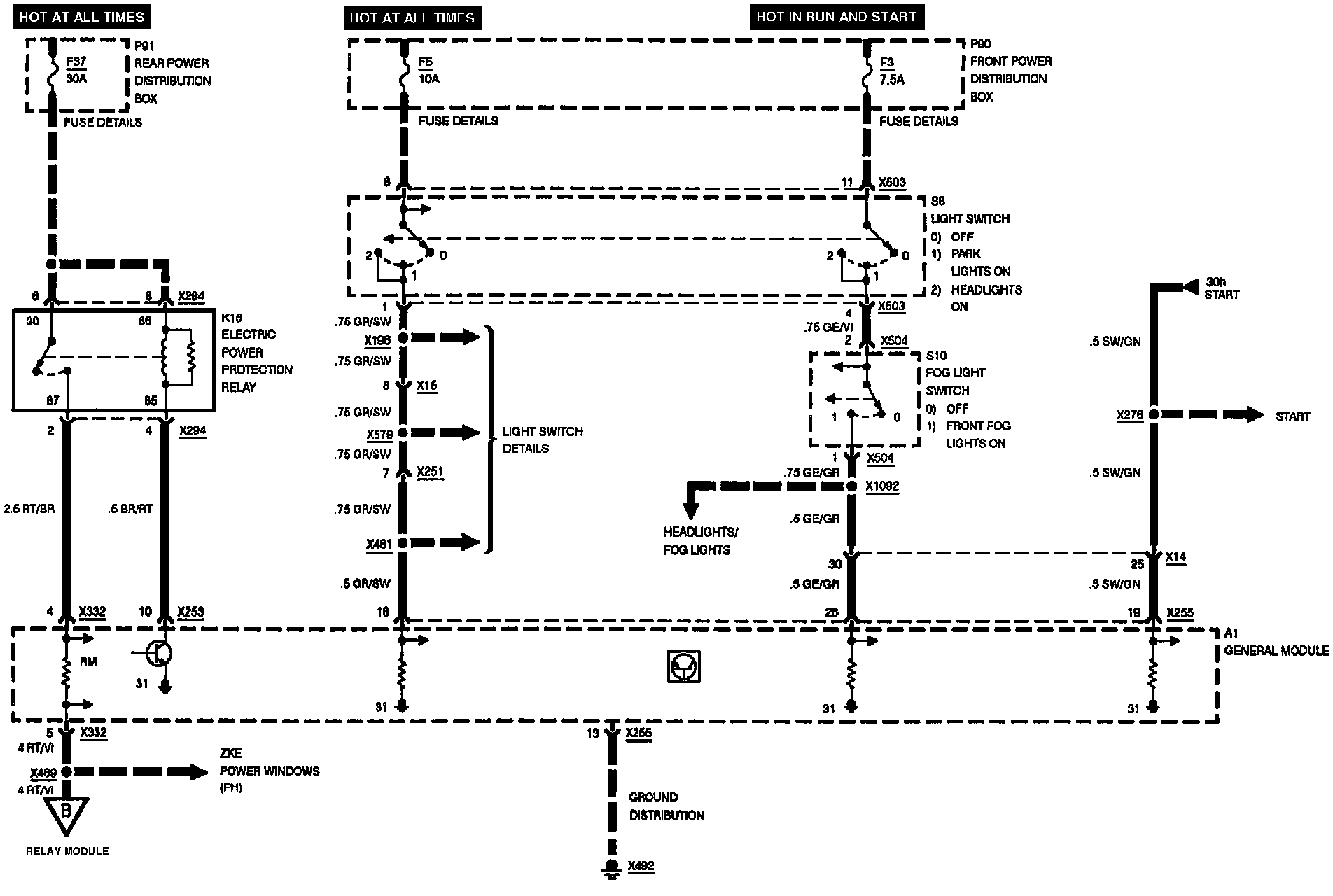

Central Body Electronics: General Module:

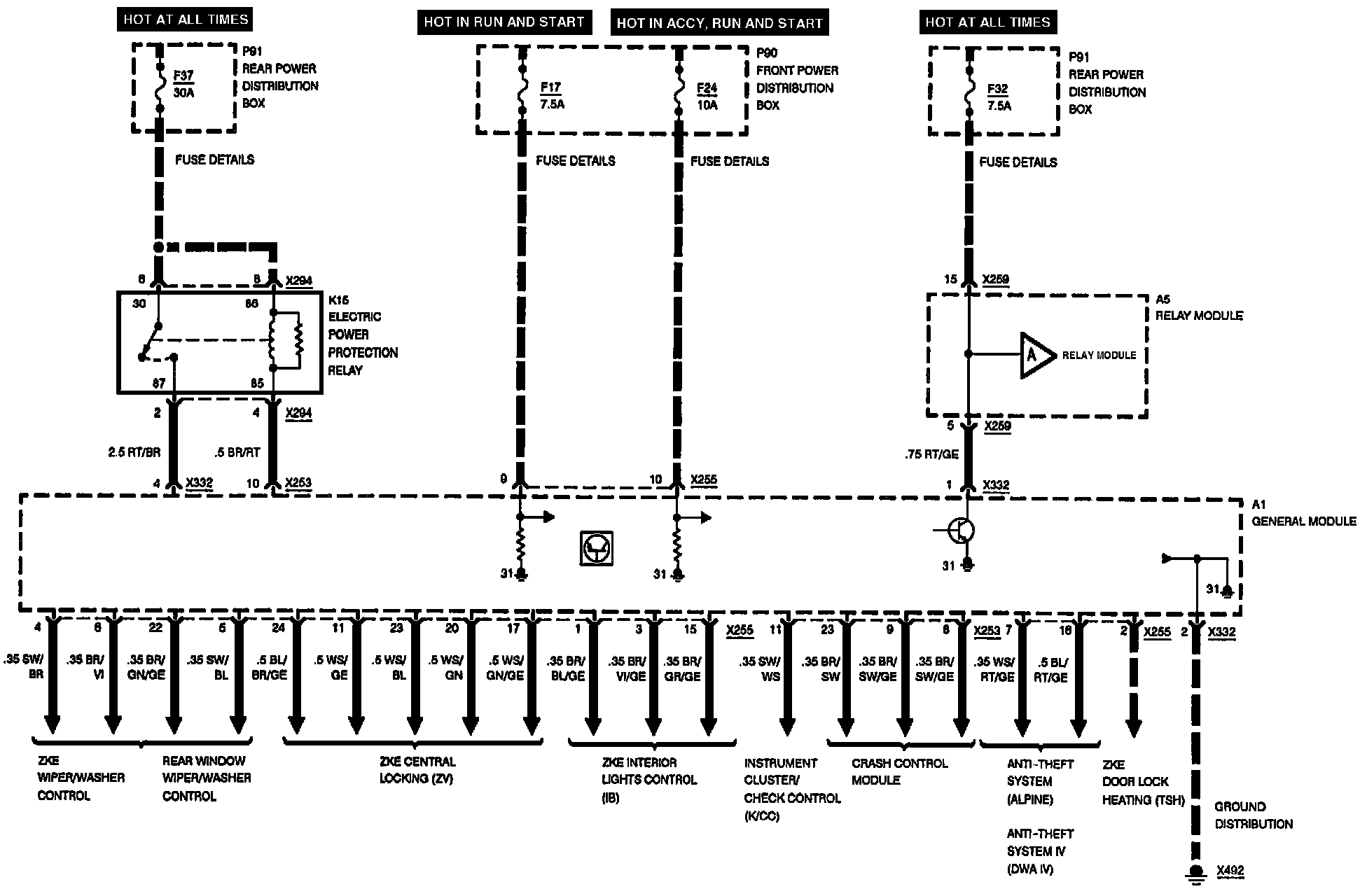

Central Body Electronics: General Module (CDN):

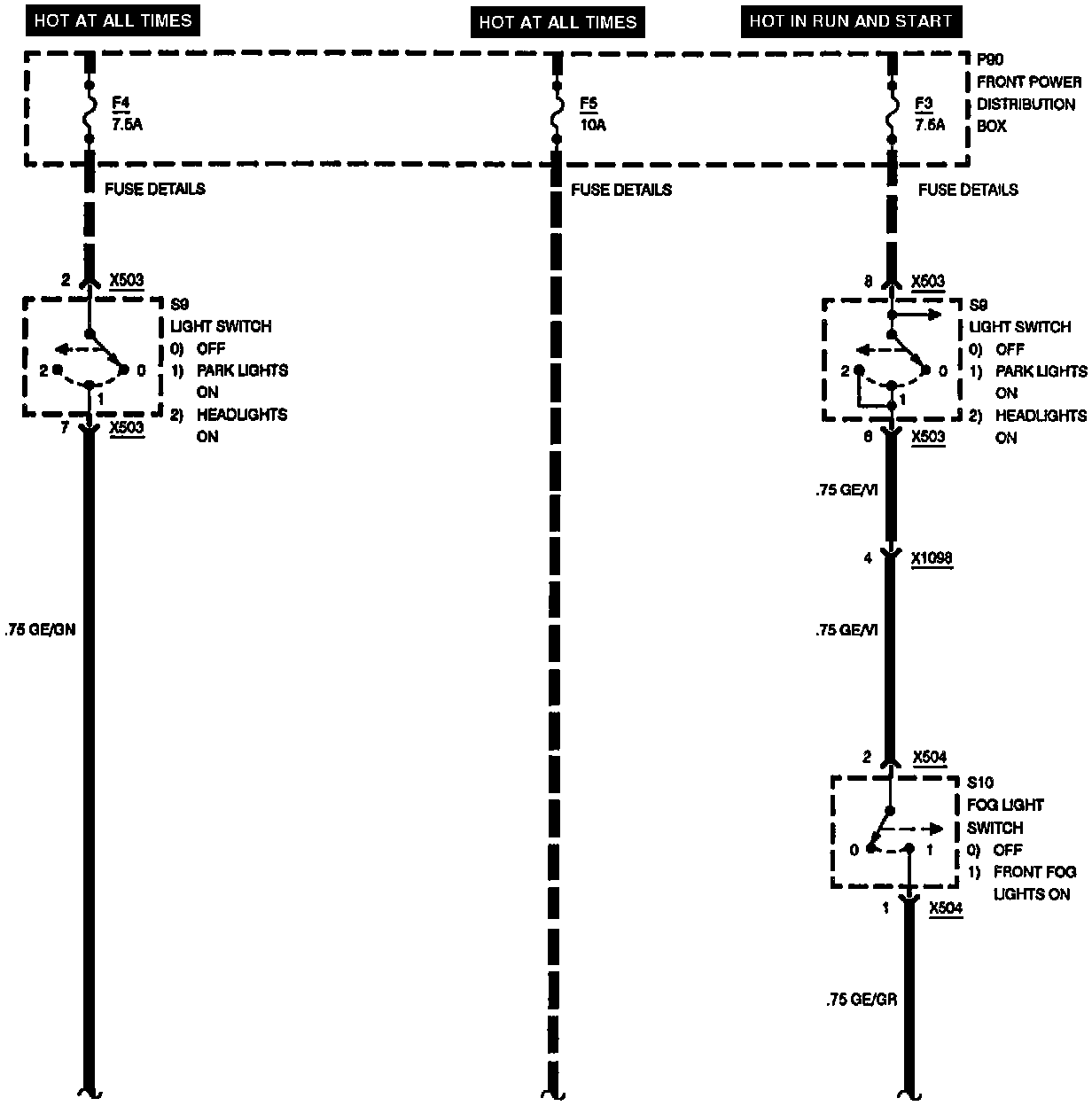

Central Body Electronics: General Module (CDN):





Central Body Electronics: General Module:
