Home >> BMW >> 1994 >> 525i Touring Wagon (E34/2) L6-2494cc 2.5L DOHC (M50 TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Traction Control Module >> Automatic Stability Control Plus Traction (ASC+T) >> Pin Assignments at Connector X31

Pin Assignments at Connector X31

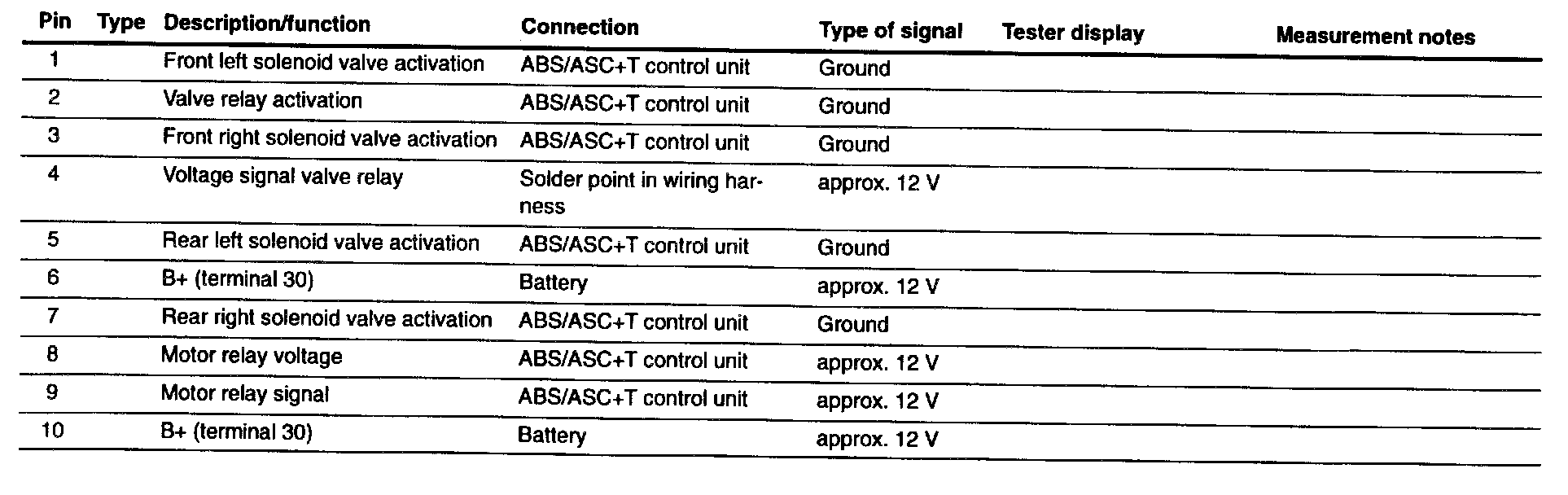

Pin 1 To 10:

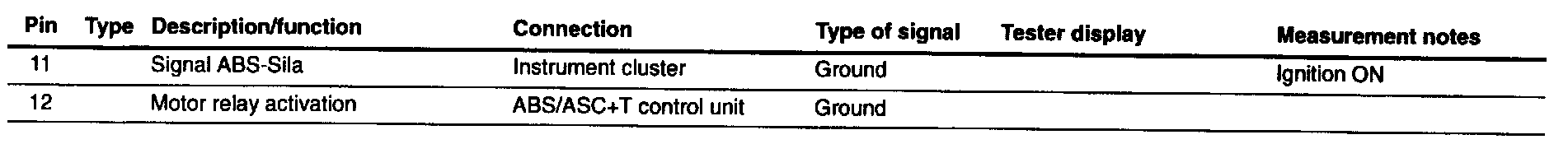

Pin 11 To 12:
