System Diagram

DME Connector View:





DME CONNECTOR VIEW

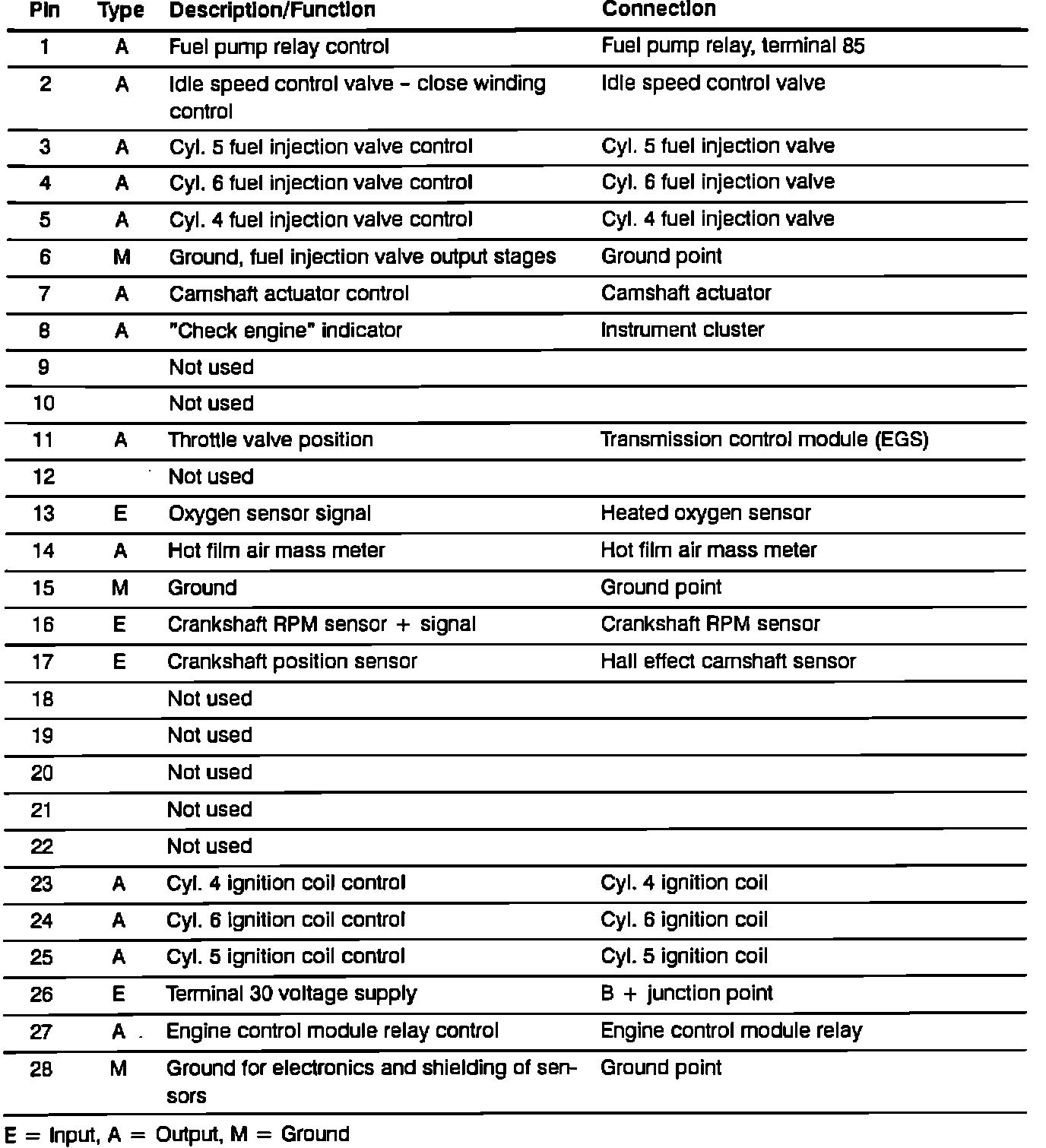

ECM Terminal Designations:

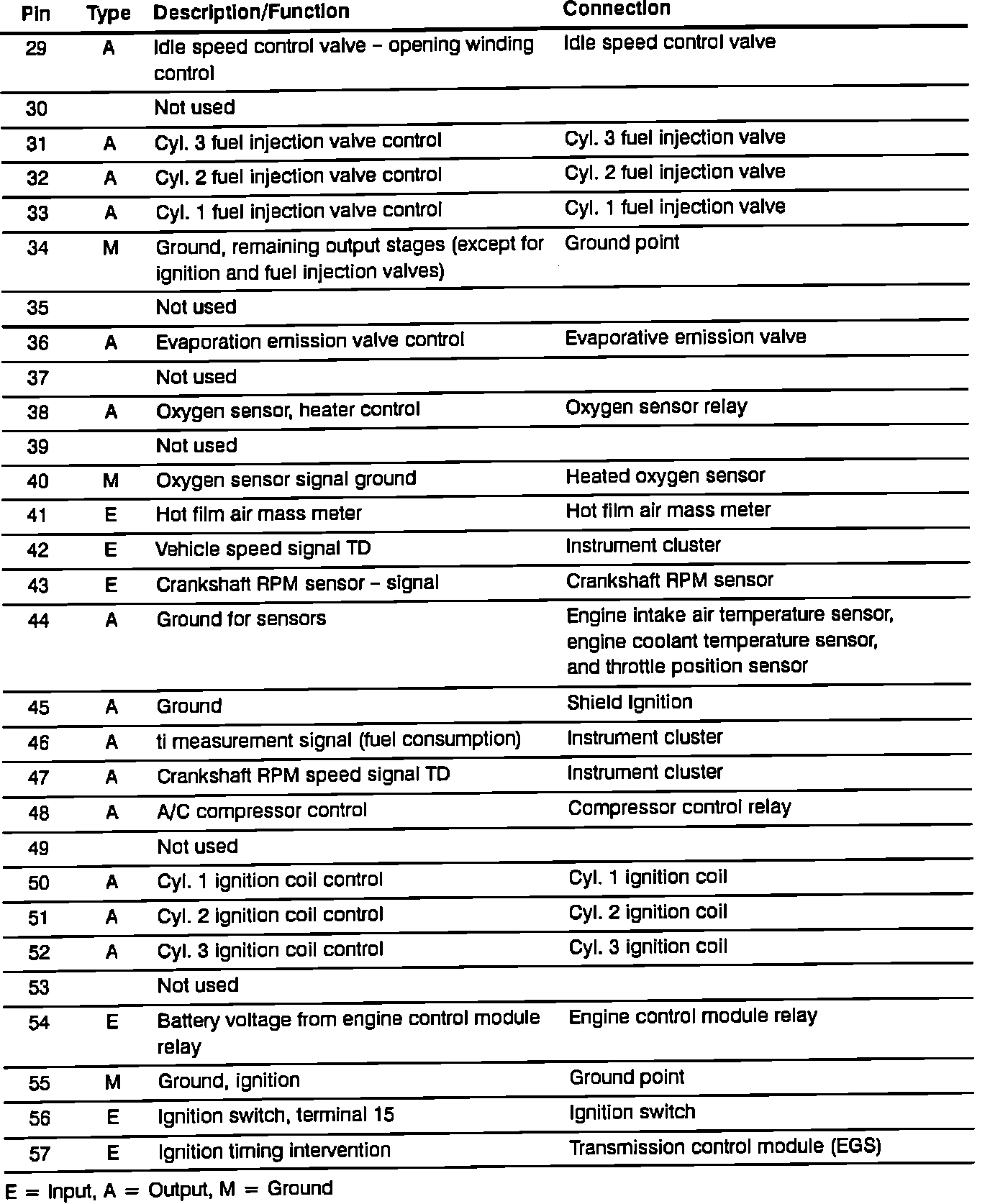

ECM Terminal Designations:




ECM Terminal Designations:

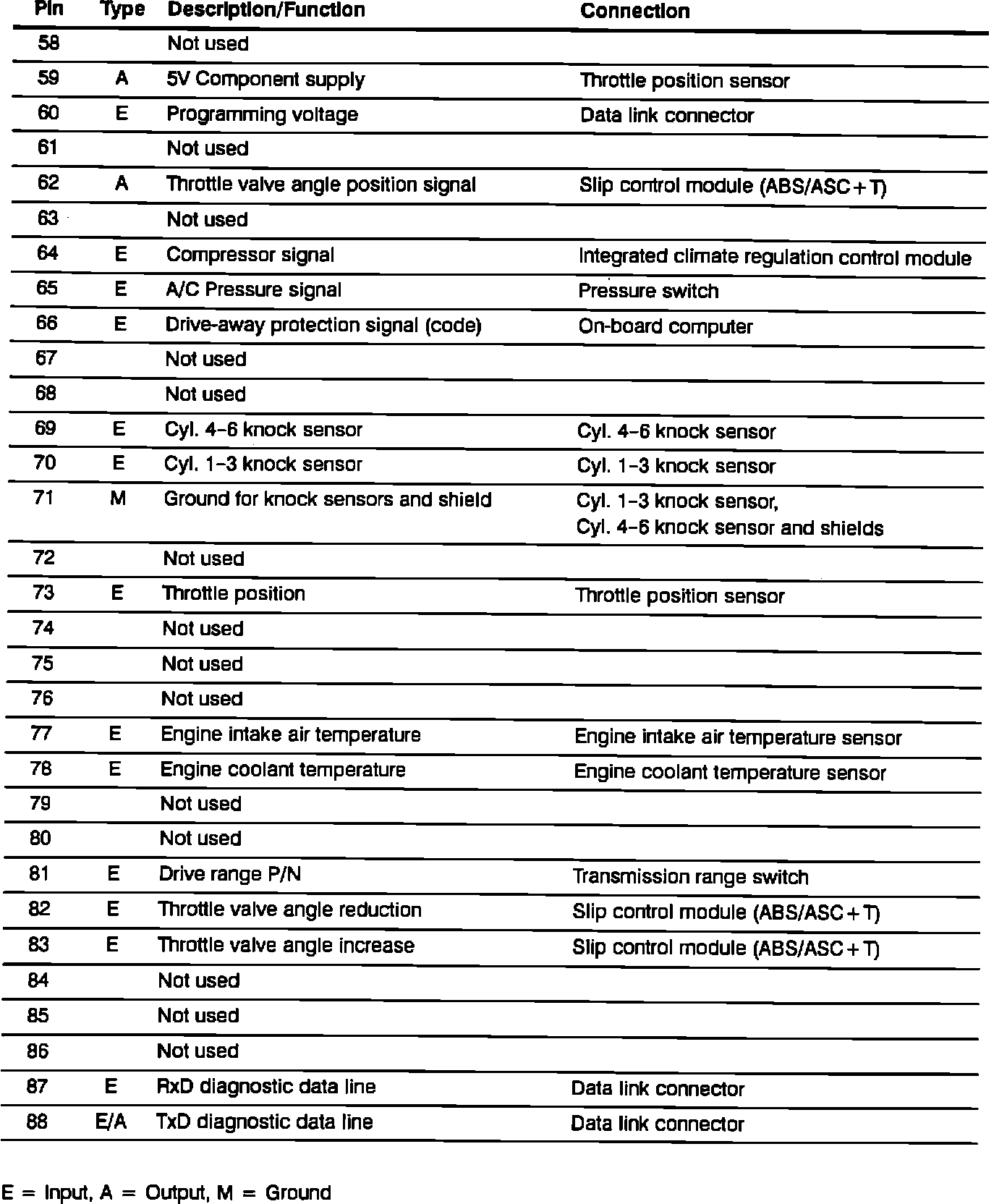

DME TERMINAL DESIGNATION
