Replacing Opening Edge Seal

Switch off ignition.

Remove front and rear roof liner frames - refer to Sunroof/Moonroof Interior Trim Panel.

Remove front and rear sun roof lids - refer to Removing and Installing Sun Roof Lid.

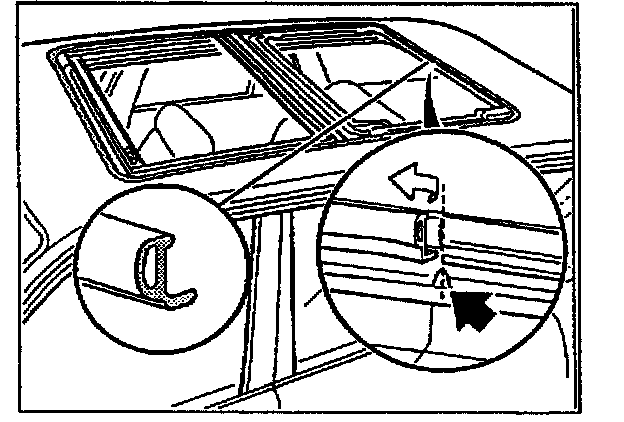

Pull off seal.





Begin removal and installation of seal at rear center.

Note: Refer to possible repairs with cyanacrylate cement (Loctite No.380*) on Replacing Cemented Seals, if the seal has become loose.

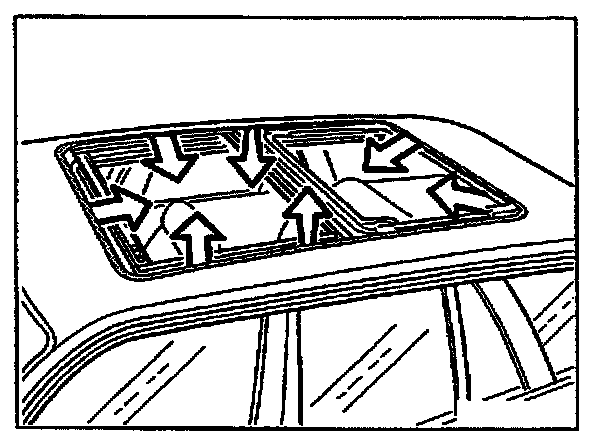

Refer to Replacing Cemented Seals for information about repairing cemented seals on the dual lid sun roof.

Install front and rear sun roof lids and front and rear roof liner frames.

Adjust front sun roof lid - refer to Front Lid Adjustment.
