Cushion and Backrest

Rear seat cushion and backrest, removing and installing

1. Remove backrest side section. Refer to "Backrest Side Section"

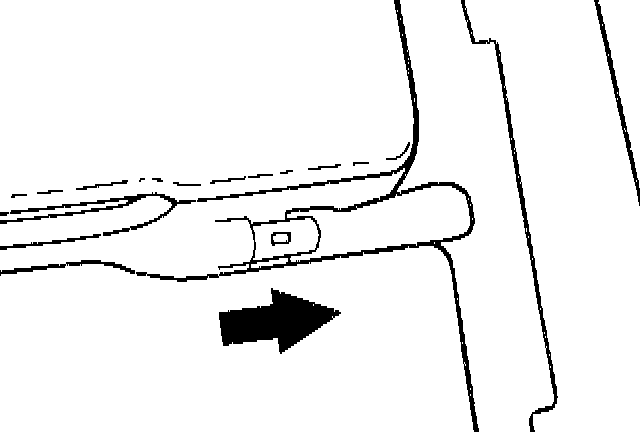

2. Fold both backrests forward. Pull up locking plate between backrests.

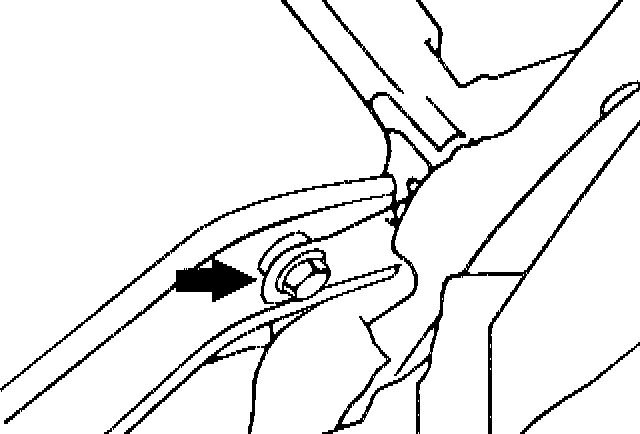

3. Remove bolts from lower outside corners of left and/or right backrest.




4. Unlock backrest and remove upwards.
