Pin Assignments

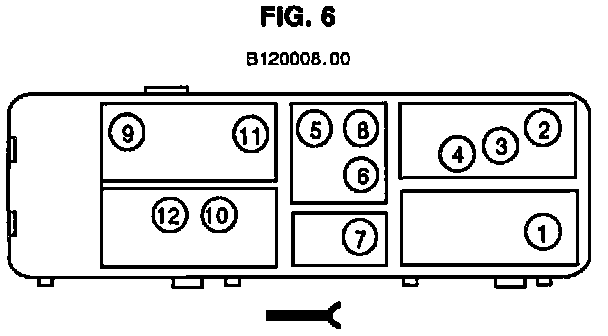

Connector Views: Fig.6:

X603 CONNECTOR (12-PINS, BLACK)
X604 CONNECTOR (12-PINS, BLACK)

Connector Views: Fig.4:

X880 CONNECTOR (6-PINS, WHITE)
X881 CONNECTOR (6-PINS, WHITE)

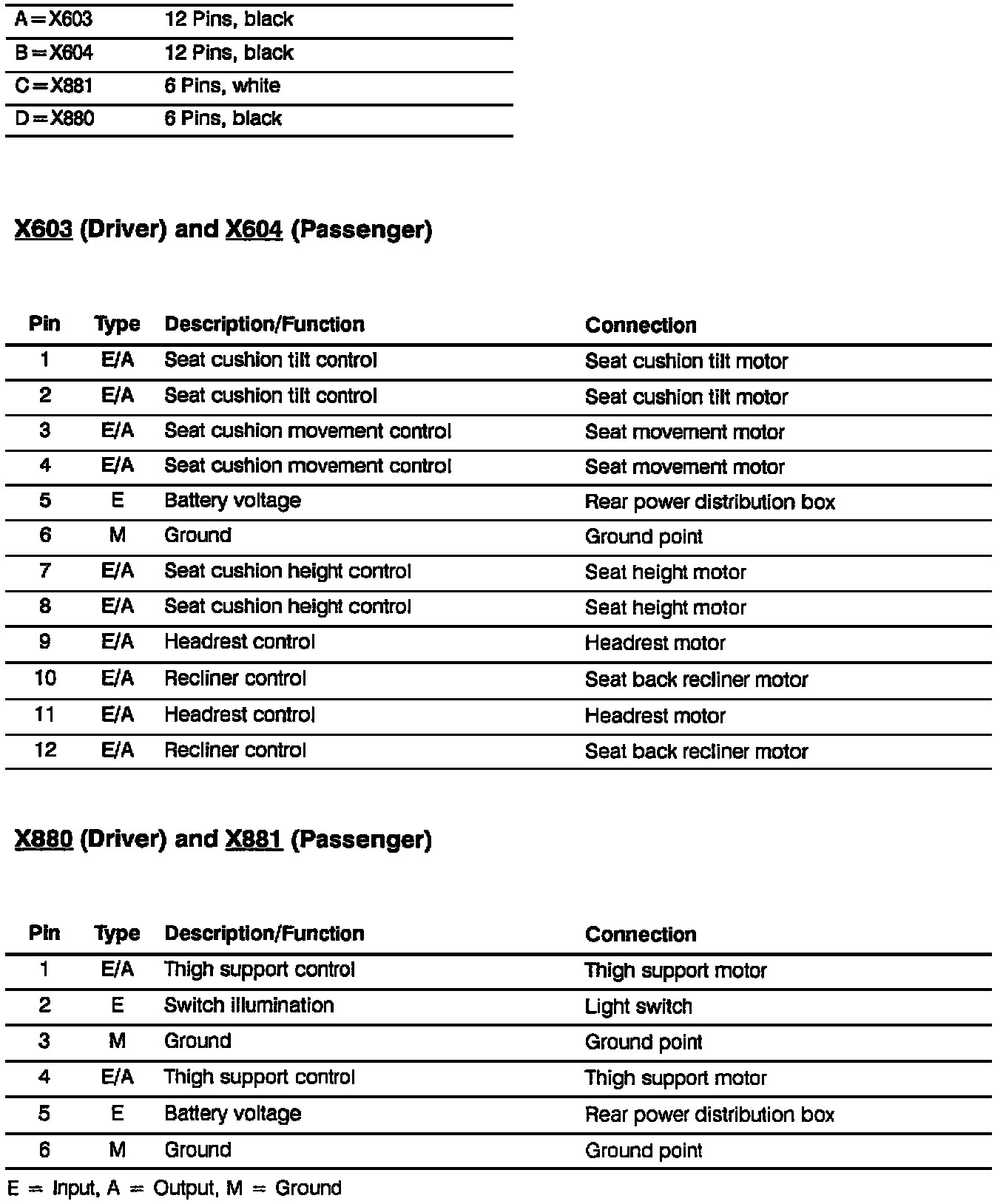

Power Seats: Pin Assignments:
