525i Touring Wagon (E34/2) L6-2494cc 2.5L DOHC (M50 TU)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Electrical Diagrams
>>
Power Seats
>>
Driver
Driver

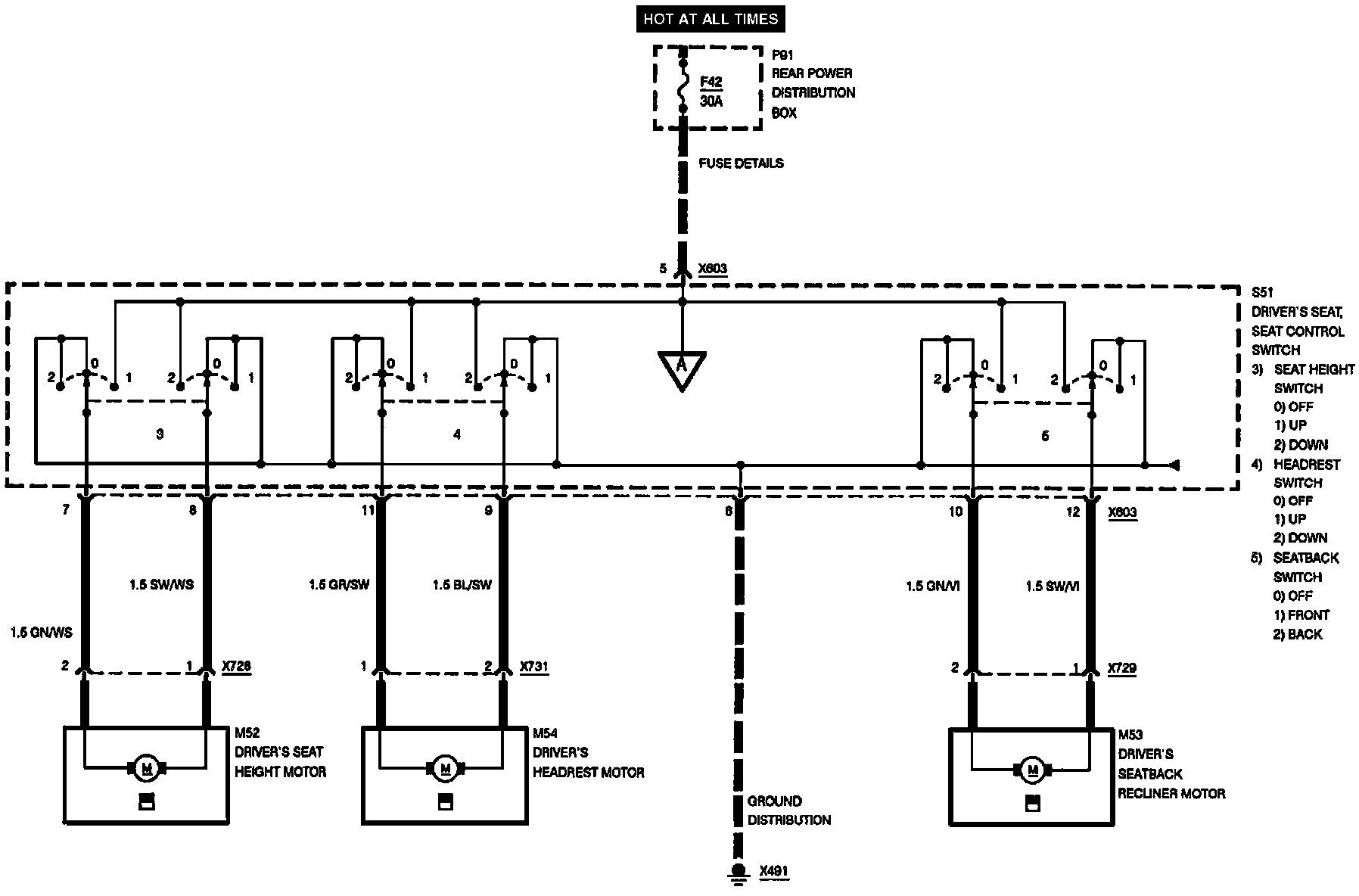

Power Seats: Driver's Seat (Part 1 Of 2):

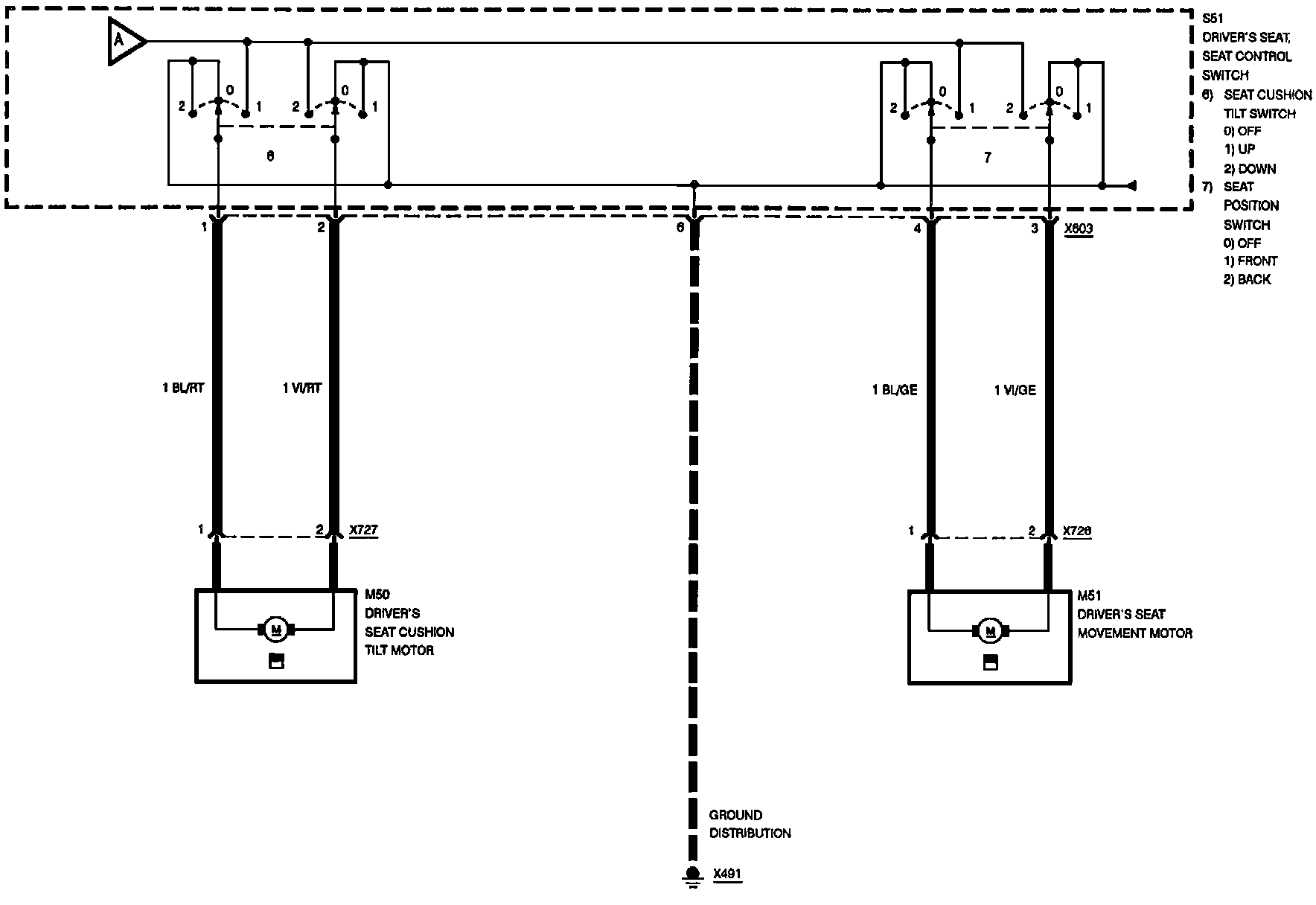

Power Seats: Driver's Seat (Part 2 Of 2):
