Replacing Seal For Sunroof Lid

Remove front roof liner frame - refer to Sunroof/Moonroof Interior Trim Panel.

Remove front sun roof lid - Removing and Installing Sun Roof Lid.

Note: Refer to possible repairs with cyanacrylate cement (Loctite No. 380*) on Replacing Cemented Seals, if the seal has become loose.

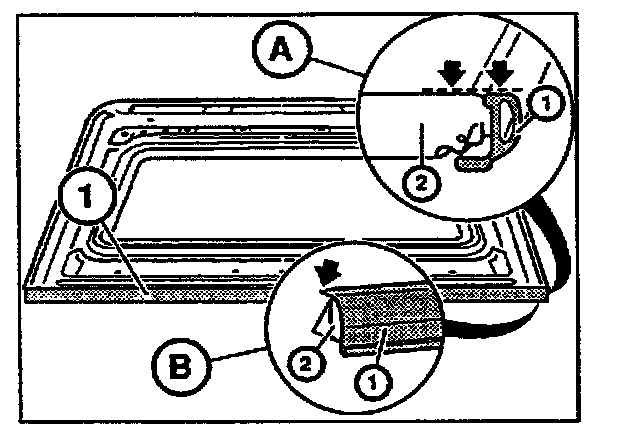

Pull off seal (1). Clean the cement surface.

A: Cement seal (1) level to the lid's upper edge (2).

B: Seal (1) must slightly protrude on lid (2) at left outside and right top.

Install front sun roof lid front and roof liner frame.

Adjust front sun roof lid - refer to Front Sunroof Lid.
