Removal and Installation of Rear Lid Motor

Switch off ignition.

Remove rear section of roof liner - refer Sunroof/Moonroof Interior Trim Panel.

Close the sun roof completely (zero position). Close manually if necessary - refer to Emergency (Manual) Closing.

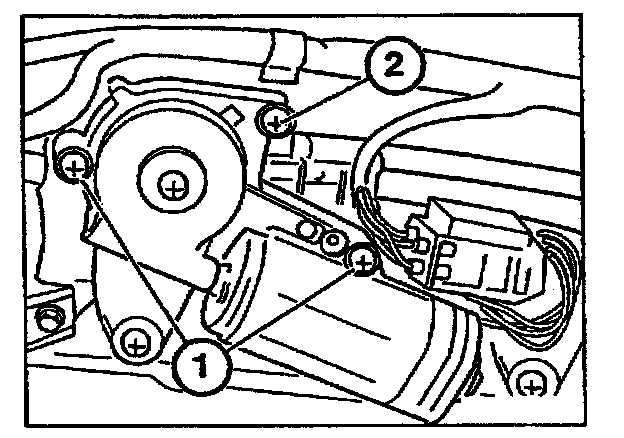

Unscrew screws (1 and 2).

Disconnect plug and remove motor/gearbox unit.

Installation:
Screw (2) is longer. Tightening torque = 3.5 Nm

Reverse procedure to install.
