Removal and Installation of Front Lid Motor

Switch off ignition.

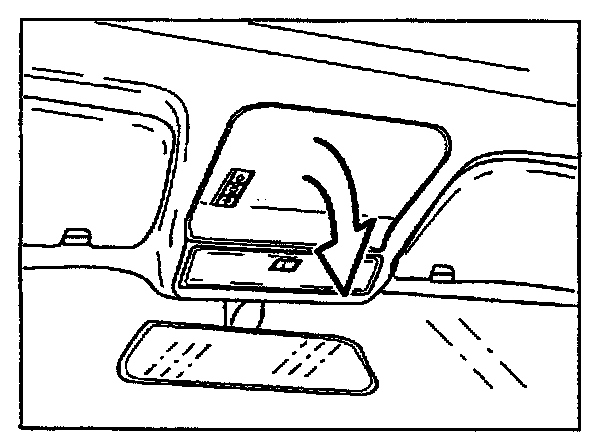

Lift out cover using a bone folder.

Close the sun roof completely (zero position). Close manually if necessary - refer Emergency (Manual) Closing.

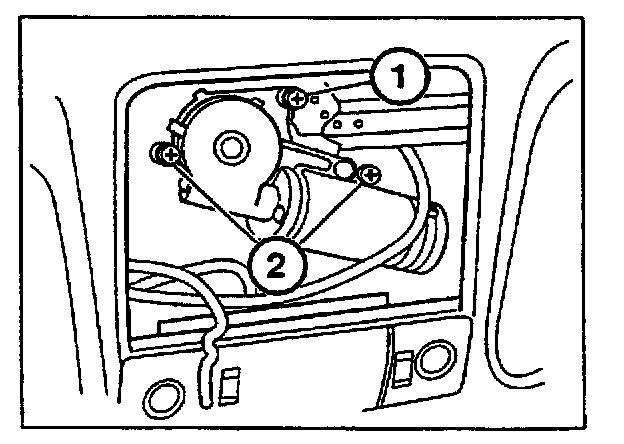

Unscrew screws. Disconnect plug and remove motor/gearbox unit.

Installation:
Tightening torque = 3.5 Nm

Reverse procedure to install.
