Sunroof / Moonroof Module: Service and Repair

Switch off ignition.

Remove rear section of roof liner - refer to Sunroof/Moonroof Interior Trim Panel.

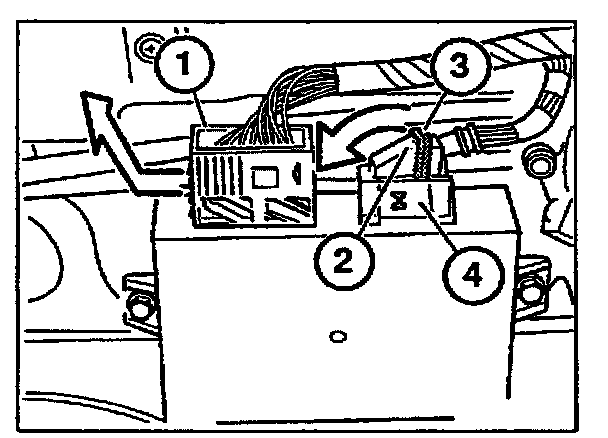

Disconnect plug (1).

Press down on lock (2) and lift out plug (4) together with the arresting arm (3) to the left.

Installation:
Carry out initialization.

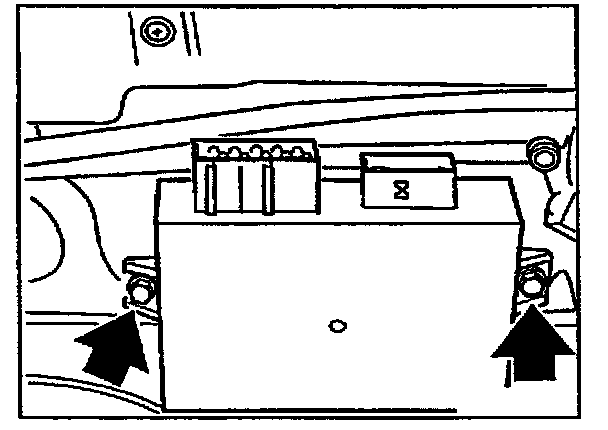

Unscrew screws and remove module.

Reverse procedure to install.
