Replacing Rear Lid Roof Liner Frame

Remove front sun roof frame - refer to Replacing Front Lid Roof Liner Frame.

Close the sun roof.

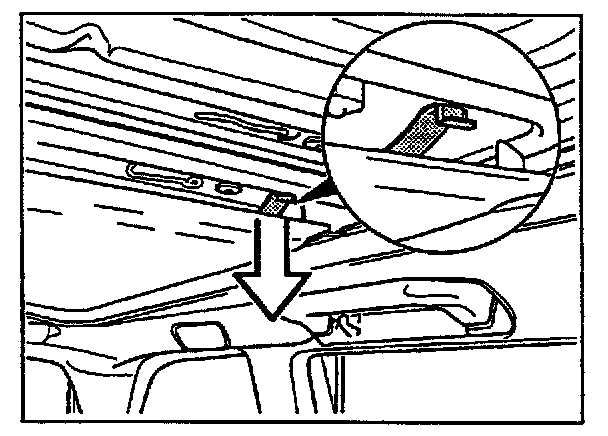

Press down on left and right springs and pull the roof liner frame forward slightly.

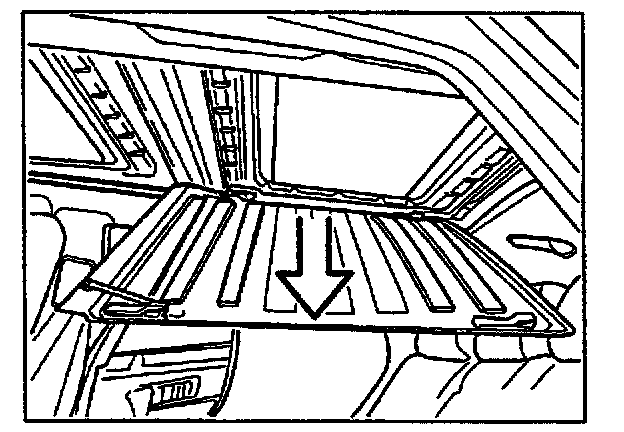

Push the roof liner frame to the right and upwards and remove to the left and downwards.

Installation:
Ensure that left and right springs engage correctly.

Install front sun roof frame. Check function.
