Replacing Front Lid Roof Liner Frame

Open front sun roof lid.

Note: Panels are only clipped on (similar to A-pillar trim panels) in standard production since the middle of March, 1992. These panels cannot be installed on "old lids".

Note: The panel need only be removed for adjustments, removal or replacement of the front lid. Production Before Middle of March, 1992: If applicable, unscrew front screws.

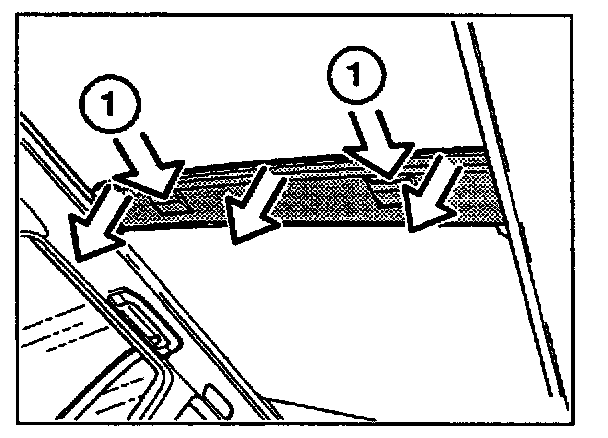

Push panel back (1) and unclip downwards.





Installation:

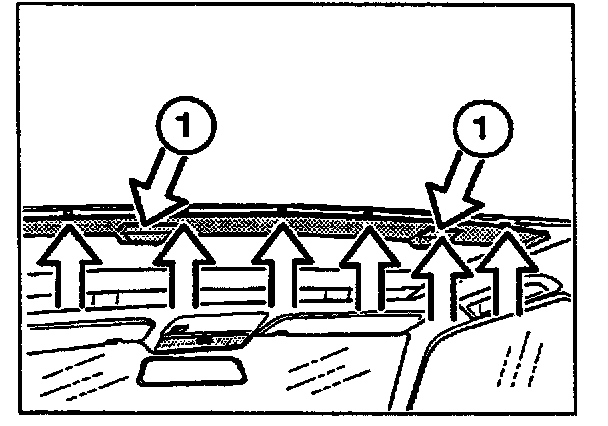

Insert panel at front end, push forward (1) and clip in at rear end.

If applicable in case of damaged dips on panel and if identical panel is not available: Drill three holes through the rear end of the panel and through the lid's internal plate.

Protect the lid's internal plate against corrosion. Screw on panel with self-tapping screws (same as front).

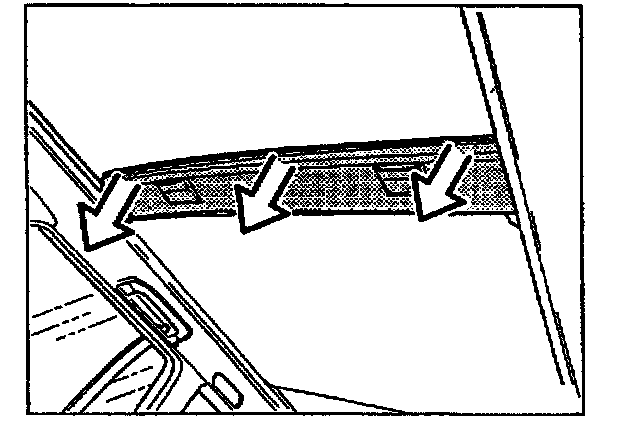

Unclip the panel towards the rear for production after the middle of March, 1992.

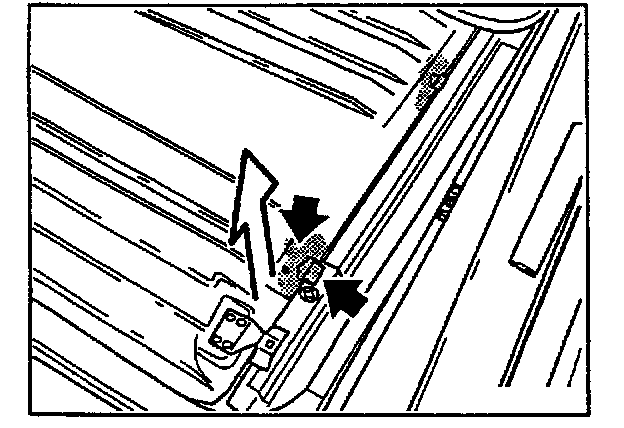

Press down on left and right springs and push the roof liner frame forward.

Installation:
Ensure that left and right springs engage correctly.

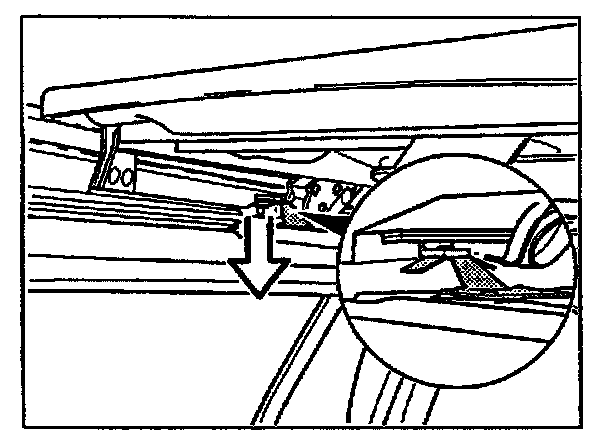

Pull the roof liner frame forward. Press the front slide out upwards through the opening and push the roof liner frame back slightly until it can be lifted over the wind deflector.

Pull the roof liner frame forward again and also press out the center slide.

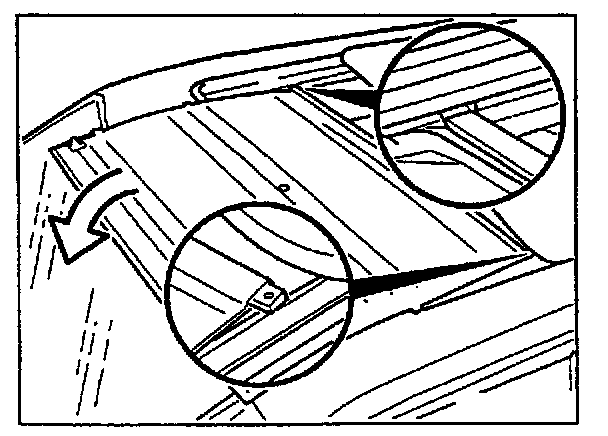

Twist and remove the roof liner frame upwards.

Installation:
Reverse procedure. Check function.
