Rear Sunroof Lid

Switch off ignition.

Remove rear roof liner frames - refer to Sunroof/Moonroof Interior Trim Panel.

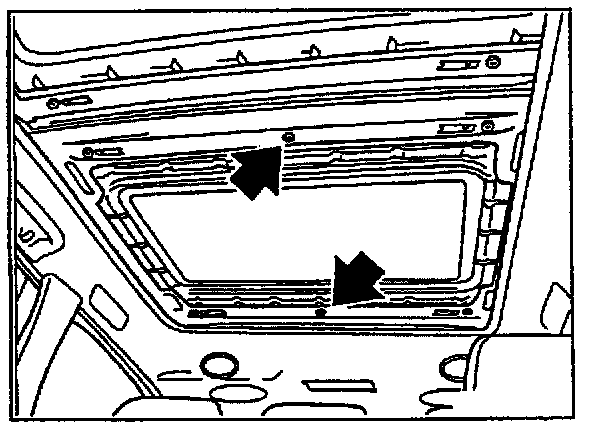

Unscrew screws.

Installation:
Replace screws (micro-encapsulated). Tightening torque = 5 Nm

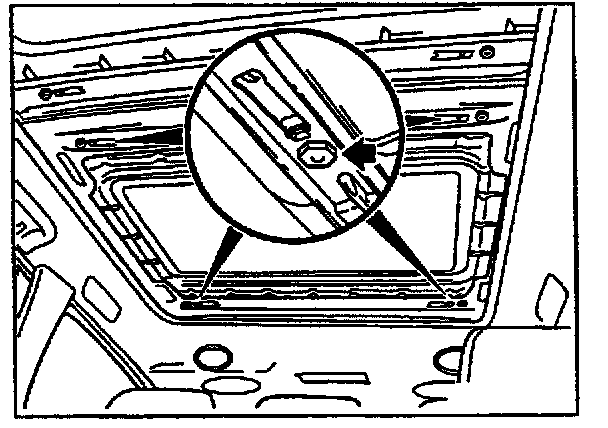

Unscrew nuts and remove sun roof lid upwards.

Installation:
Refer to Replacing Rear Sunroof Lid. Adjust rear sun roof lid - see Rear Lid Adjustment. Replace nuts (micro-encapsulated). Tightening torque = 5 Nm

Lubricate guide rails of the cross members with Renax GL1 from "Fuchs".

Install rear roof liner frames.
