Front Sunroof Lid

Switch off ignition.

Remove front roof liner frame. See Sunroof/Moonroof Interior Trim Panel.

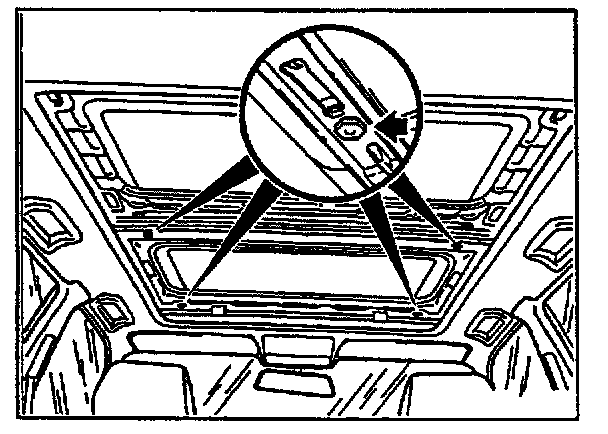

Unscrew screws.

Installation:
Refer to Replacing Front Sunroof Lid. Replace screws (micro-encapsulated). Tightening torque = 5 Nm.

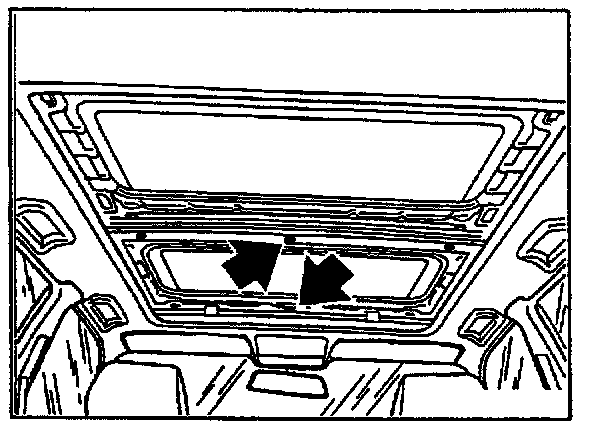

Unscrew nuts and remove sun roof lid upwards.





Installation:
Adjust front sun roof lid - refer to Front Lid Adjustment. Replace nuts (micro-encapsulated). Tightening torque = 5 Nm.

Install front roof liner frame.
