At Relay Module (Applicable to Both Systems)
At Relay Module (Applicable to Both Systems)

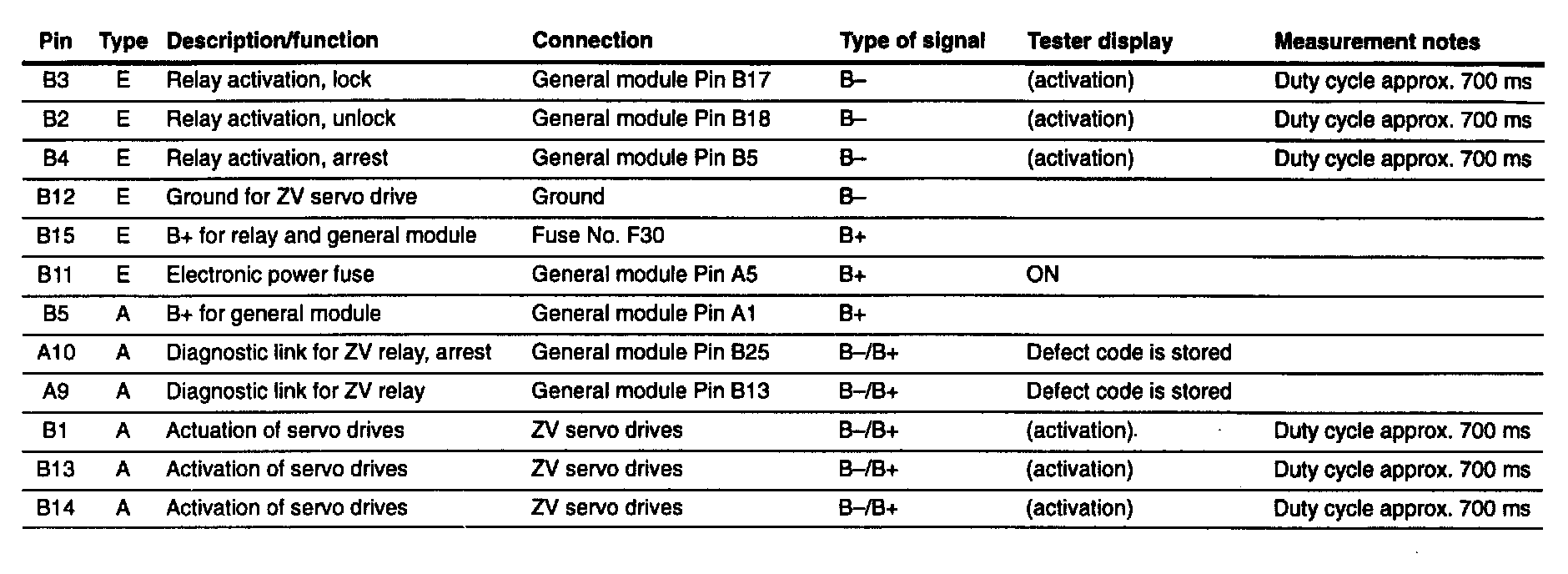

Pin Assignments At Relay Module (Applicable to Both Systems):
