Rear Door Window Glass: Adjustments
ADJUSTING REAR DOOR WINDOWRemove rear door trim panel. Service and Repair

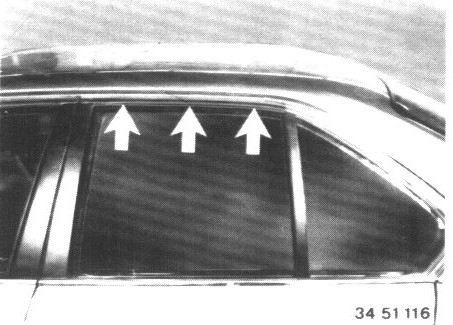

Door window glass must be parallel to the window frame and run Into the upper window seal uniformly.

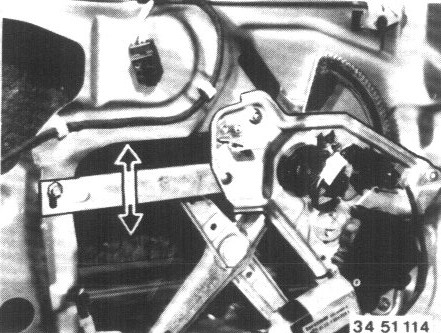

The window can be adjusted parallel to the ornamental frame by adjusting the guide rails.

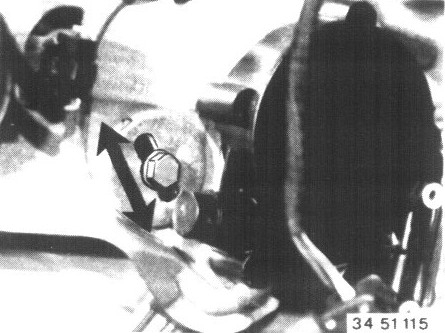

Door window glass is limited at the top by an adjustable stop.

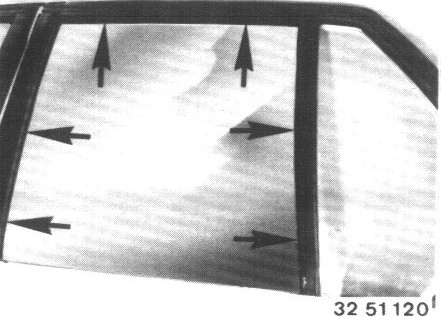

Note: Rubber seal must bear uniformly on the door window glass (to prevent wind noise).
