Front Door Window Glass: Service and Repair
REMOVING AND INSTALLING FRONT DOOR WINDOWRemove front door trim panel. Service and Repair
Installation:
Adjust front door window. Adjustments

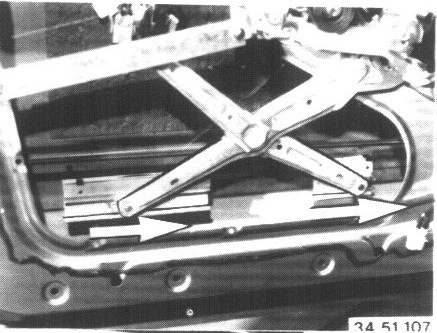

Lower the window.
Lift out retainers.
Lift window out of ball heads.
Lift out window recess seal and ornamental strip.
Lift out ornamental frame.

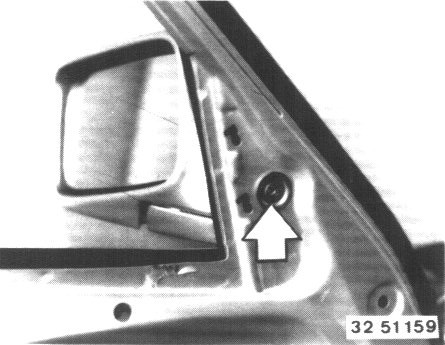

Unscrew bolt.
Pull off leads.
Lift out mirror.

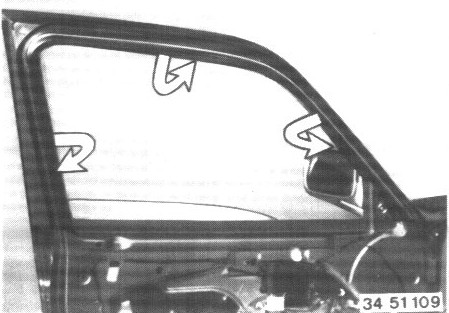

Lift out rubber guide.
Unscrew screws.
Lift out plate.
Unscrew screw in area of B pillar.

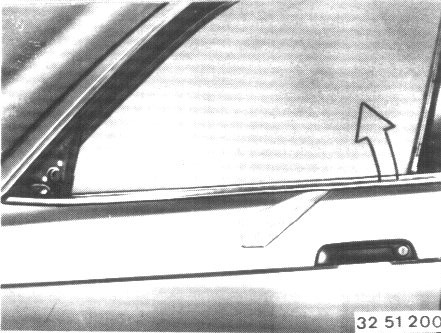

Lift out ornamental strip and window recess seal.
Pull out window glass from above.
Installation:
Insert window glass into guides on left and right sides.
