Front Door Window Glass: Adjustments

ADJUSTING LEFT OR RIGHT FRONT DOOR WINDOW

Remove front door trim panel. Service and Repair

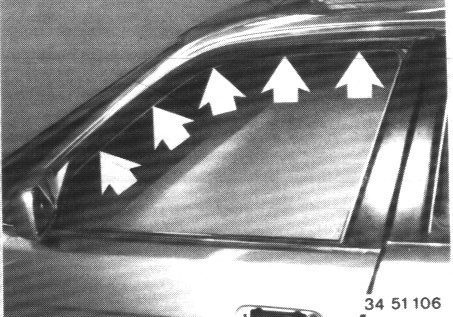

Door window must be paraliele to the window frame and submerged to an uniform depth in the top window seal.

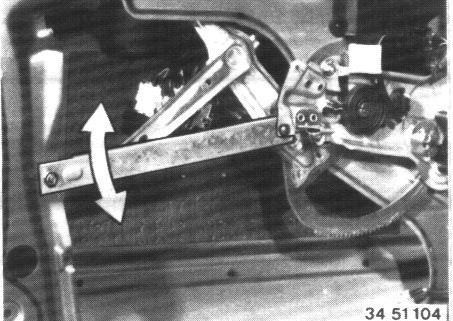

The window can be adjusted parallel to the window frame by adjusting the guide rails.

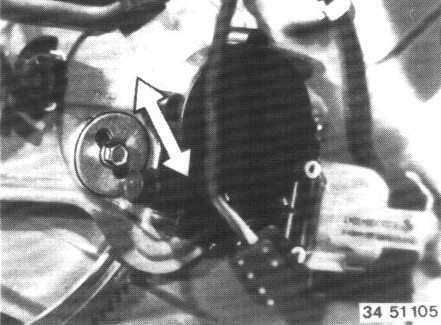

The door window is limited at the bottom by the adjustable stop.




Note: Rubber seal must bear uniformly on the door window glass (to prevent wind noise).
