Front Bumper: Service and Repair

REMOVING AND INSTALLING

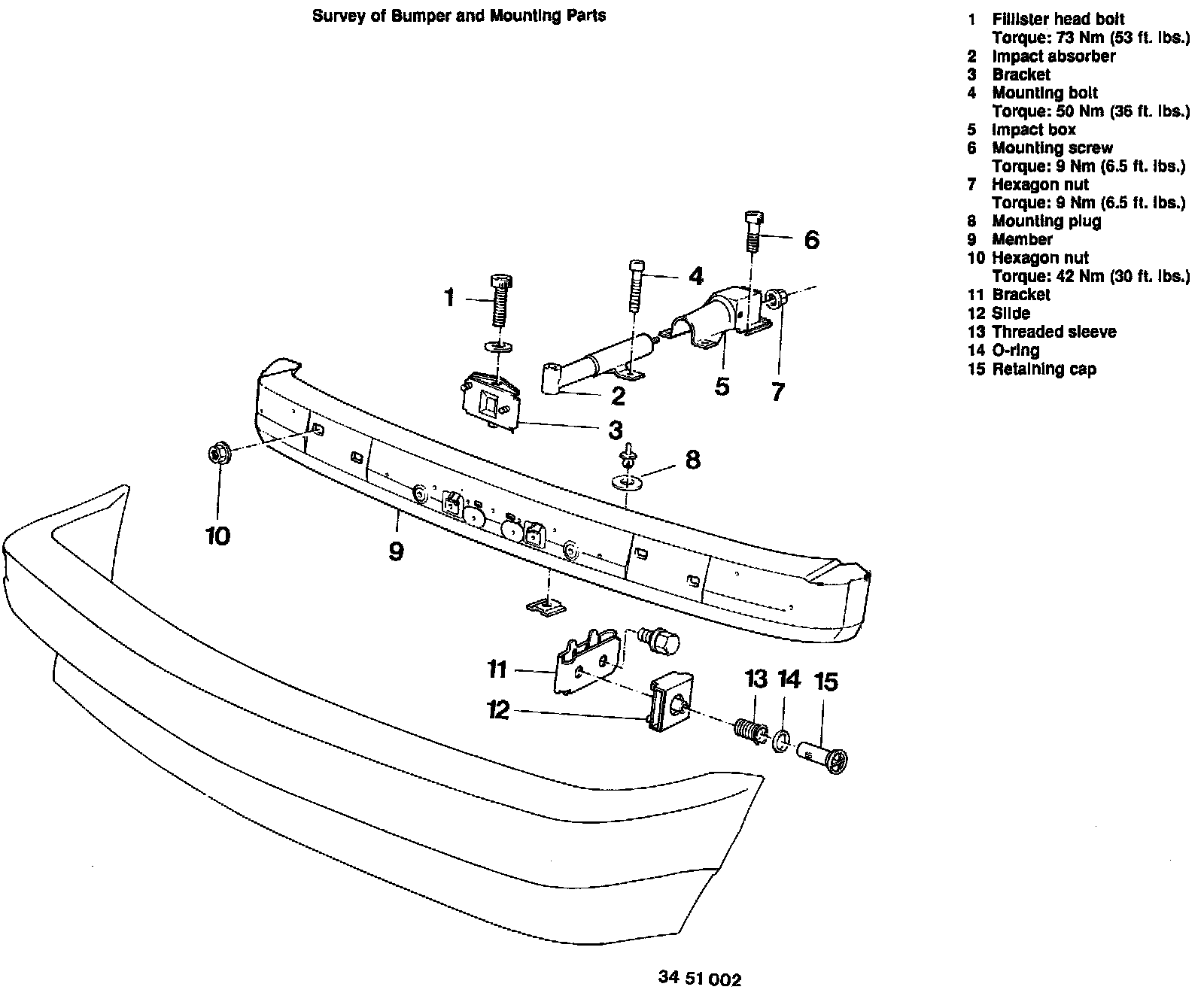

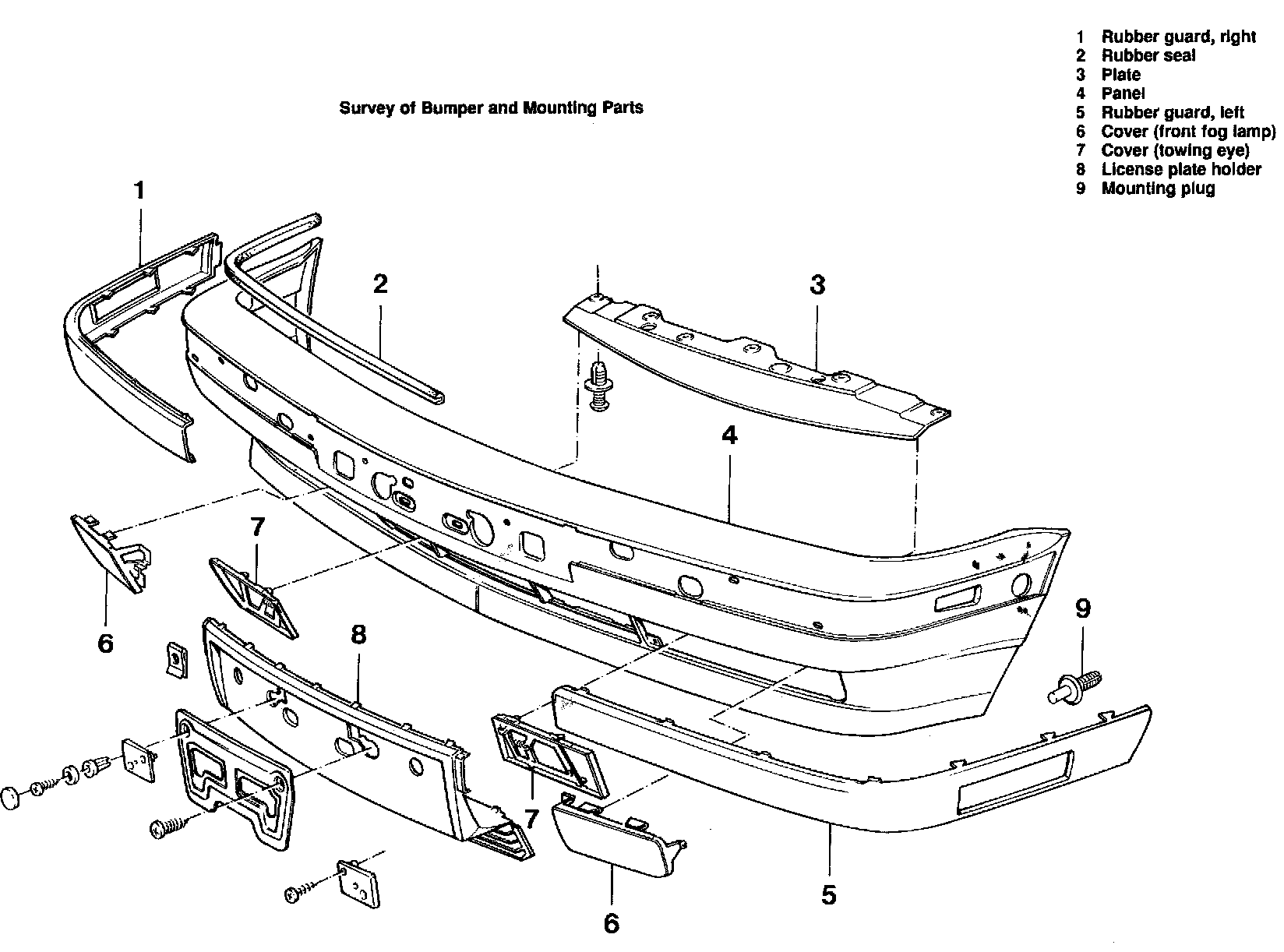

Survey of Bumper and Mounting Parts









Removal

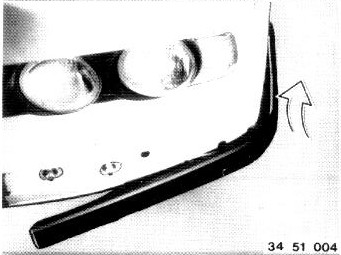

- Lift off rubber guards on left and right sides.





Installation:

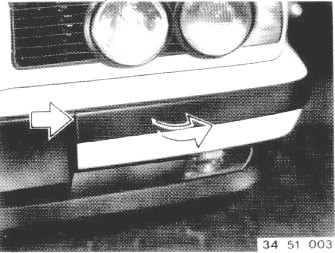

Hook and clip in rubber guards on the sides.





- Unscrew bolts on left and right sides.

Installation:
Tightening torque

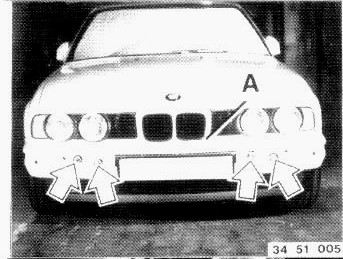

Distance "A" = 5 to 6 mm (0.197 to 0.236") all around.
Check, adjustlng if necessary.





- Pull off front bumper forward.

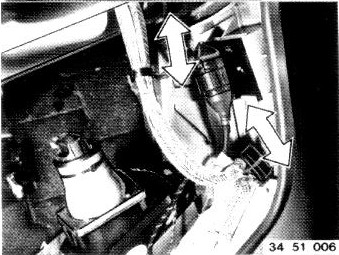

- If applicable, disconnect plug for front fog lamps and connection for headlight cleaners.





Installation:

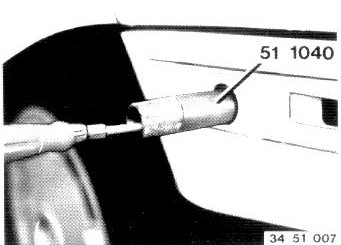

If necessary, adjust bumper to be flush with the body with Special Tool 51 1 040.

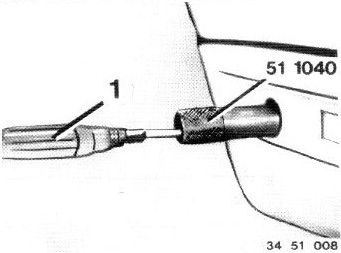

Note: Turn threaded sleeve with Special Tool 51 1 040 and hold retaining cap tight with a screwdriver (1).
