Portable Telephone - Special Tool

Group 04
Tools and Equipment

Bulletin Number
04 03 95(4154)

Woodcliff Lake, NJ
February 1995
Product Engineering

SUBJECT:
New BMW Special Tool

MODELS:
All (equipped with Motorola CMT 2000VR portable telephone)

Situation:
The following kit has been developed to allow for identity transfers between CMT 2000VR portables. Attached you will find instructions for its use.

Motorola Transfer Kit
P/N 84 11 1 468 739
Introductory Price = $71.25

This tool will be sent out via the Automatic Tool Shipment Program. Additional kits may be purchased through your PDC.


The identity transfer procedure allows the user to transfer the Electronic Serial Number (ESN), all Number Assignment Module (NAM) data, customer repertory memory, and any special features in use from the customer's present defective portable to the replacement unit.

NOTE
Identity transfers can only be preformed between same model BMW portables.

CAUTION
Make sure that you are grounded with a elastic strap during the procedure.





The following equipment is required to perform the transfer procedure: Identity Transfer Box (84 11 146 8 739) which includes one coil cord and shorting clip, customer's coil cord, defective portable telephone, and a replacement portable telephone.

1. Set Transfer Box switch to "OFF" and connect wall transformer to standard AC outlet.
2. Turn off both protable telephones and remove batteries.
3. Connect coil cord modular connectors to either side of transfer box. It does not matter which unit connects to which side of the transfer box, but it is convenient to connect the coil cord with shorting pin to the defective unit.
4. Locate the portable phone connector slot on the bottom back of the portable phone. Orient the flat accessory connector so that the white dot is facing the same direction as the front (keyboard and display side) and slide the connector into the slot. A properly made connection will generate an audible click.
5. Ensure that both portable telephone units are off. If they turn on, turn them off by depressing the PWR button.

CAUTION
It is possible to transfer the data in the wrong direction, erasing the customer's stored information. Perform the following steps precisely as directed.

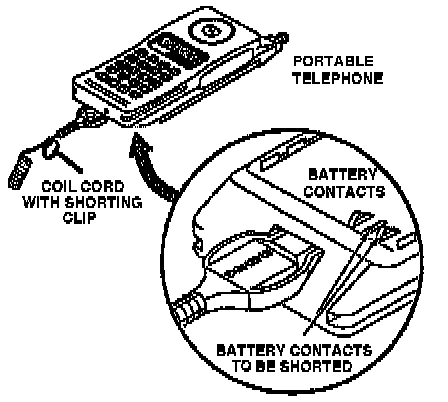

6. Using the shorting clip, short the battery contacts on back side of the defective portable telephone. Press PWR button while maintaining the shorted contacts. Remove the short once the phone is on and in manual test mode. If the phone has successfully turned on in test, the display will be flashing information about once per second.
7. On the defective portable phone, press the # button then enter number 69 followed by the #.
8. Using the same procedure as in step number 6, turn the replacement portable telephone on in the test mode.
9. On the replacement portable telephone, press the # button and turn the transfer box switch to position 1.
10. On the replacement portable phone, enter number 66 followed by #. If you see no response in the display, check that the switch is in position 1, not 2. Position 2 is not used with BMW portables and will cause the unit to ignore key presses. This will initiate the transfer procedure. After a short delay, the replacement portable will display either a "PASS" or "FAIL" message on the display. If the "PASS" message is displayed, the identity transfer has been completed successfully and the procedure is finished. If a "FAIL" message is displayed, refer to the list of fail codes below to determine the cause and possible corrective action.
11. Verify the ESN in the replacement portable telephone using the 38 # command. Turn power off on transfer box and portables and disconnect the portables.





IDENTITY TRANSFER FAIL CODES
