Home >> BMW >> 1994 >> 525i Touring Wagon (E34/2) L6-2494cc 2.5L DOHC (M50 TU) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Seat/Mirror Memory (SM/SPM) >> Defect Code 49

Defect Code 49


Defect Code 49:

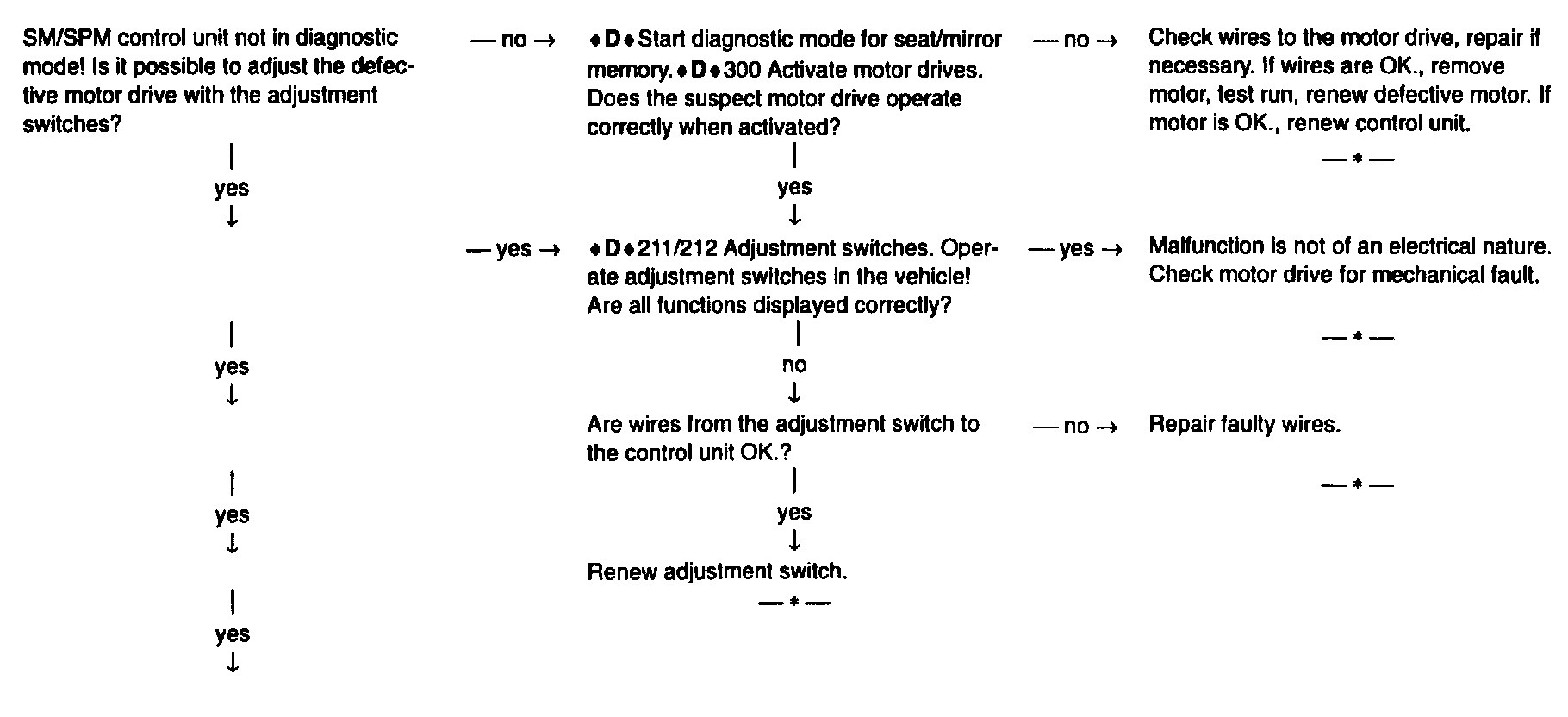

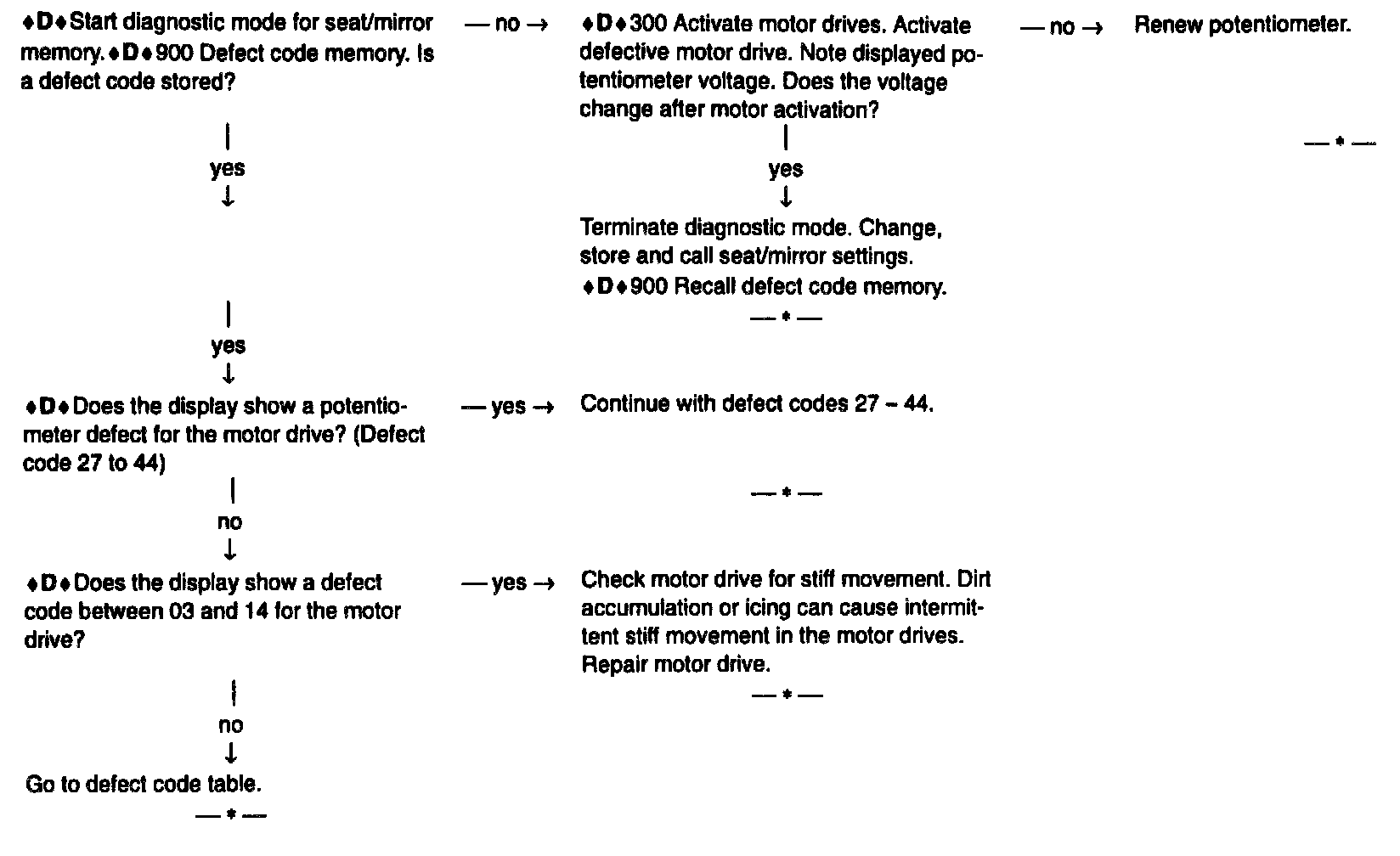

Failure of Individual seat or mirror adjustment functions:

Possible cause: Switch, motor drive, potentiometer, wires
