525i Touring Wagon (E34/2) L6-2494cc 2.5L DOHC (M50 TU)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Seat Heater
>>
Defect Code 06
Defect Code 06

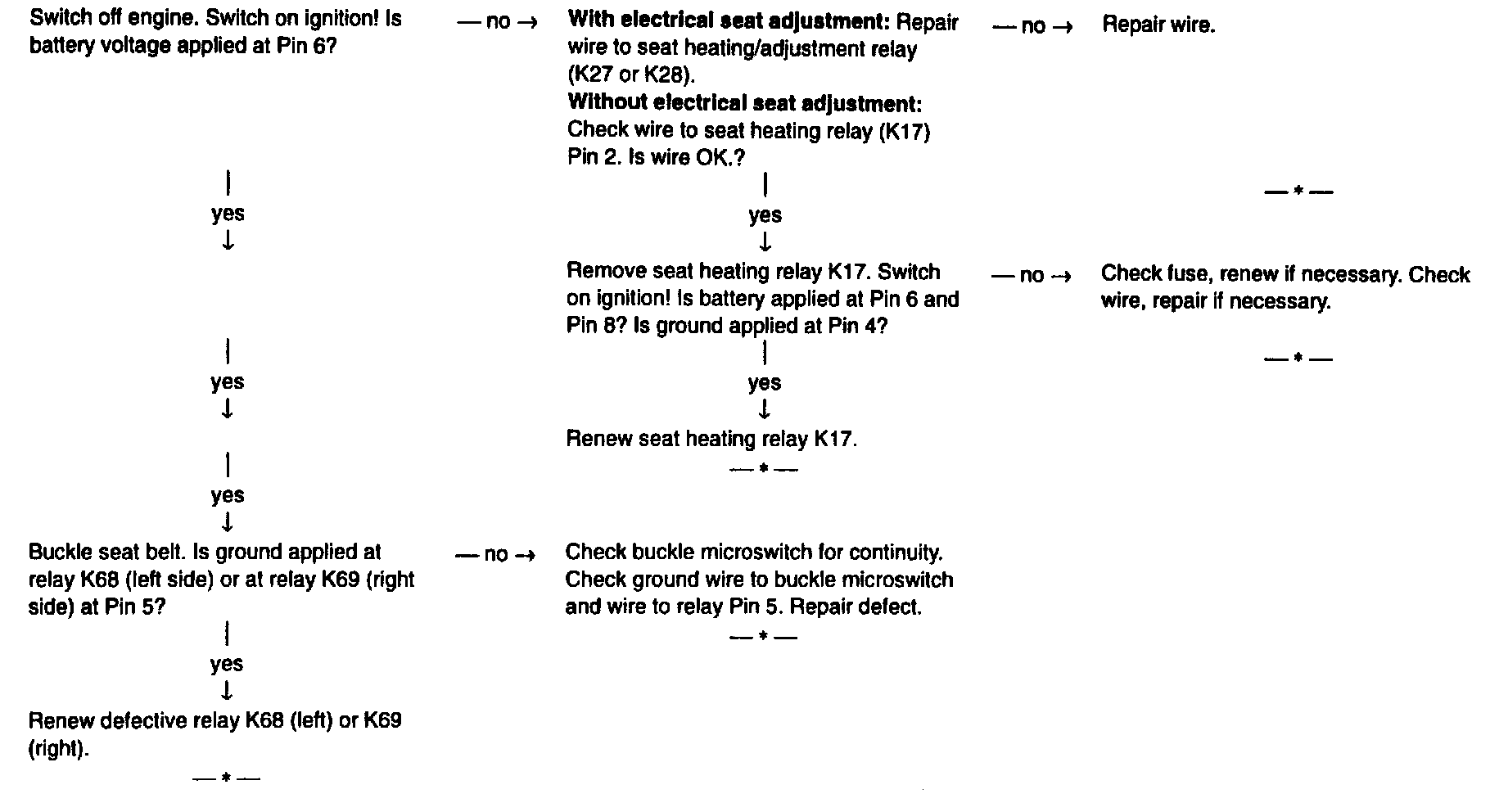

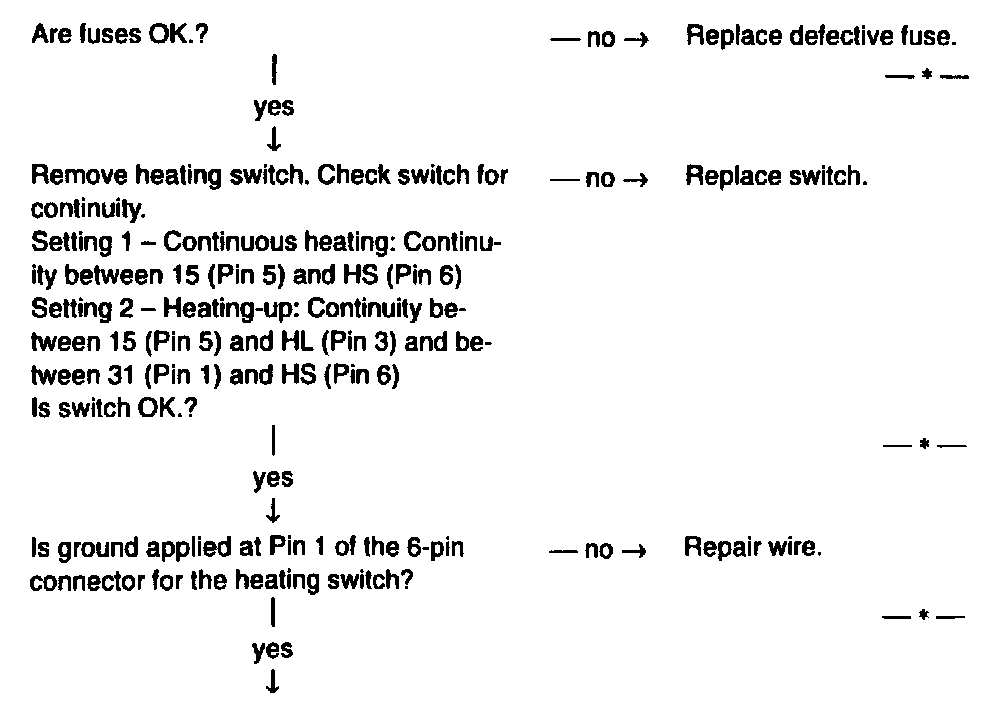

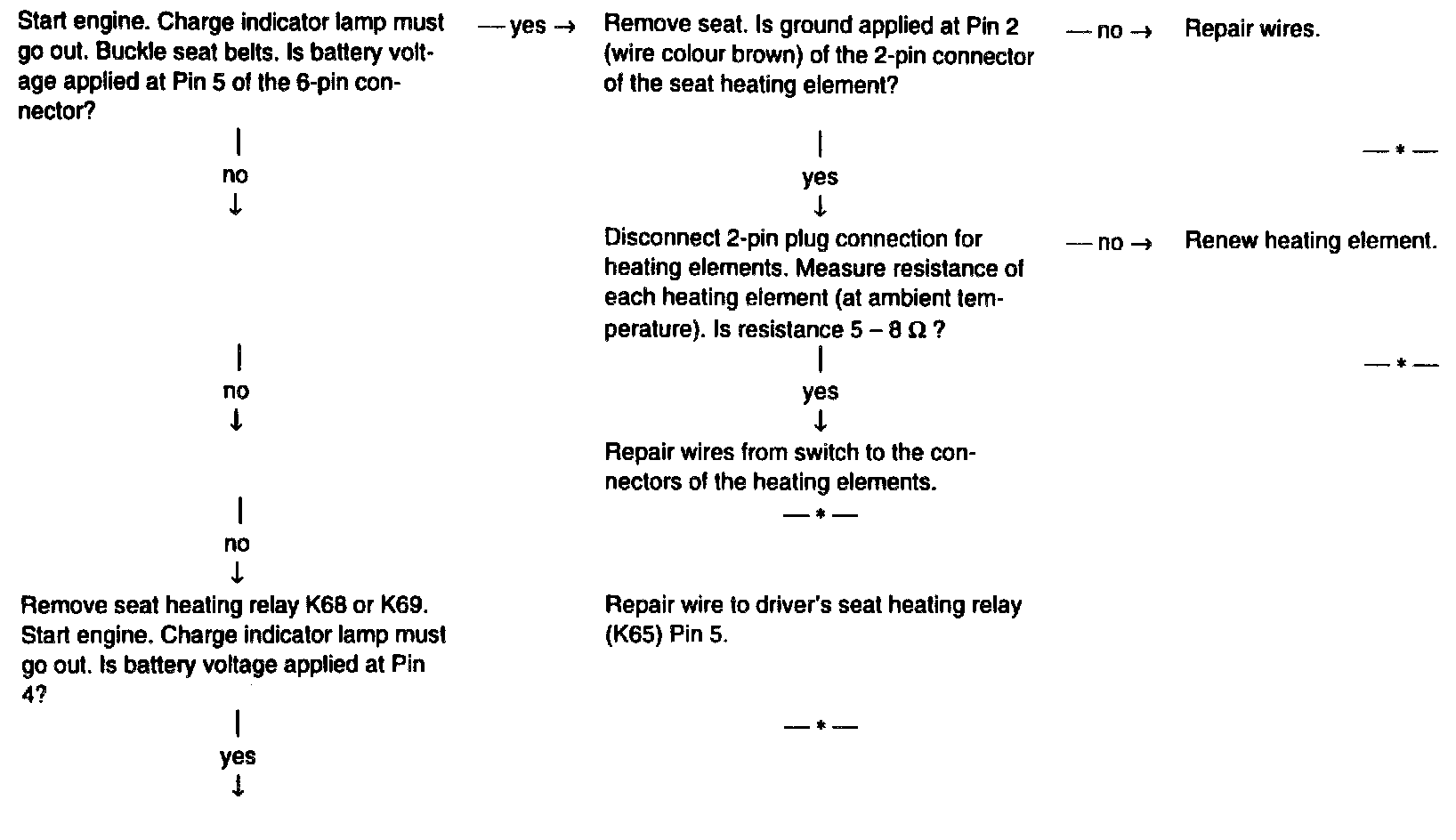

Failure Of Heating Function At Rear Seats:
Failure Of Heating Function At Rear Seats:
Failure Of Heating Function At Rear Seats:
