Seat Heater
>>
Defect Code 05
Defect Code 05

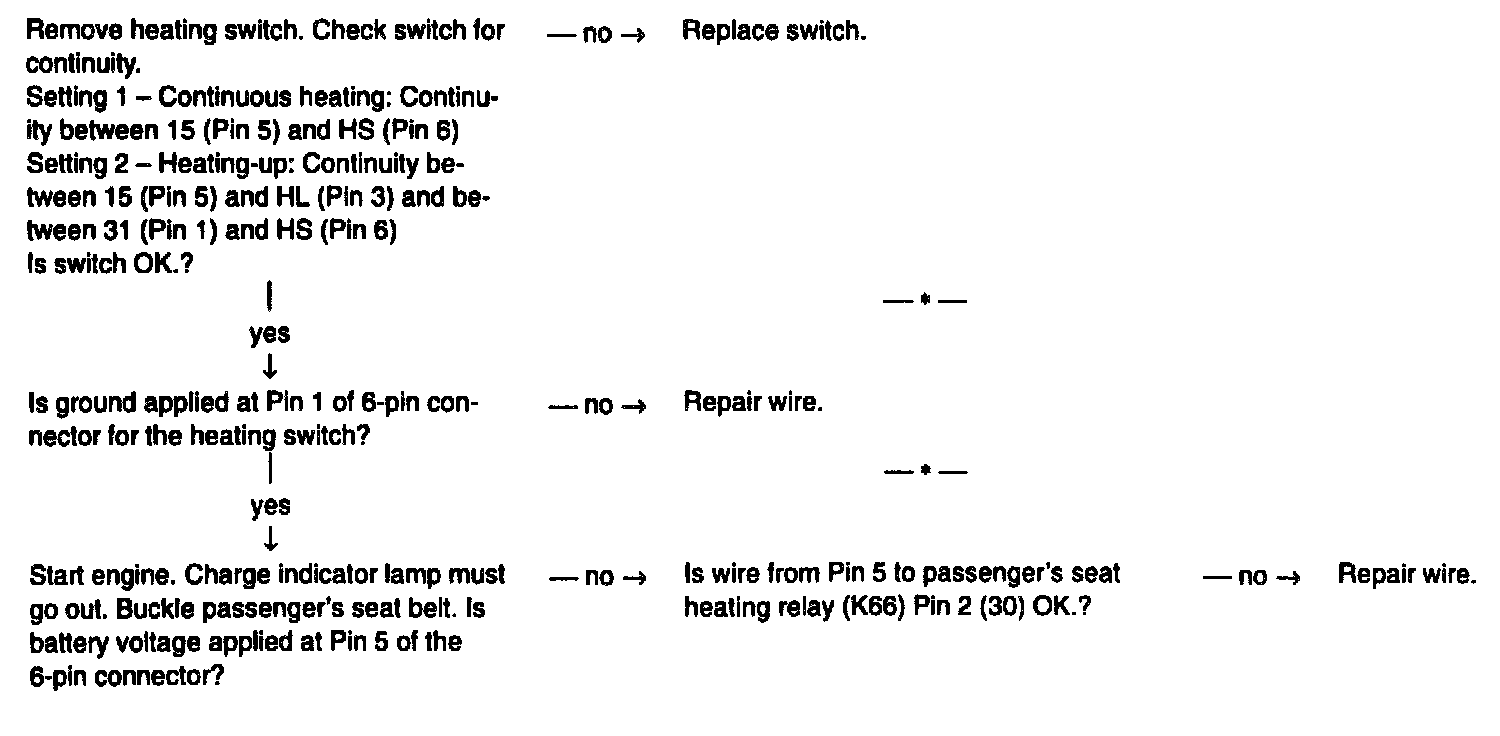

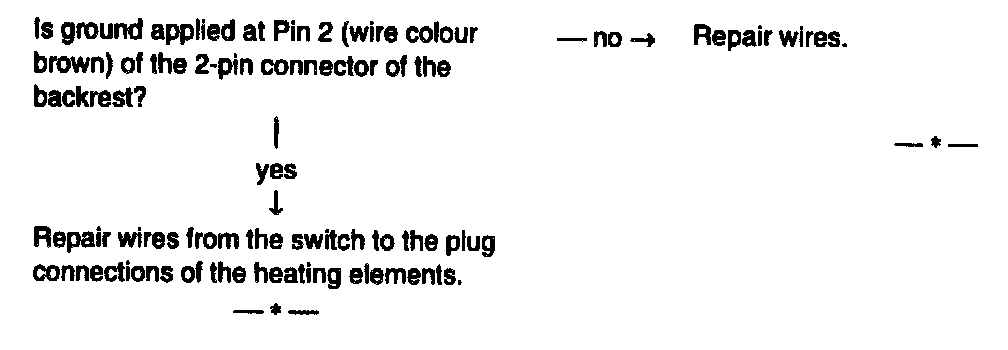

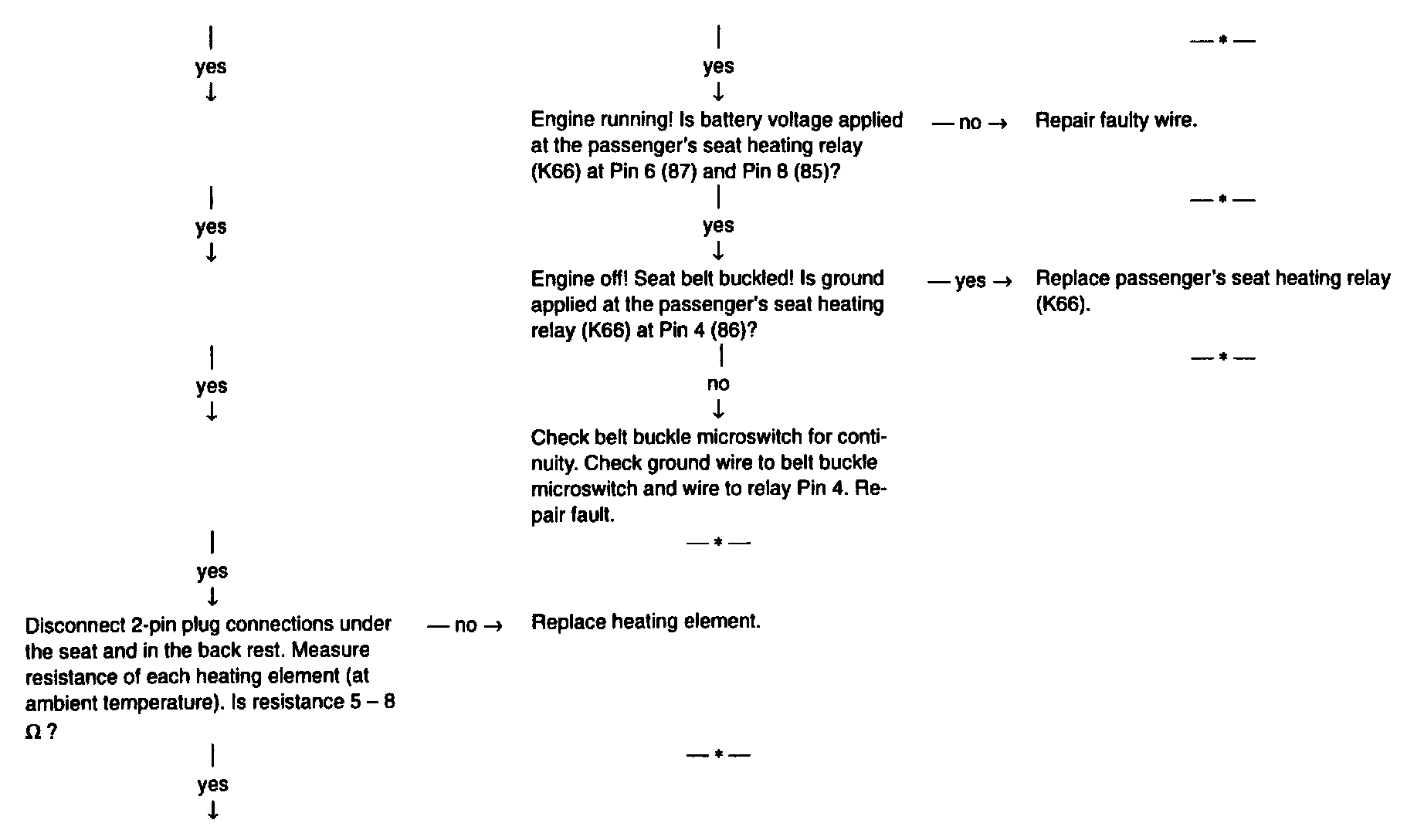

Failure Of Heating Function At Passenger's Seat:
Failure Of Heating Function At Passenger's Seat:
Failure Of Heating Function At Passenger's Seat:
